LMZ23605TZE/NOPB

Active

Texas Instruments

5A SIMPLE SWITCHER® POWER MODULE WITH 36V MAXIMUM INPUT VOLTAGE

Find alt

Alpha

LMZ23605TZE/NOPB

Active

Texas Instruments

5A SIMPLE SWITCHER® POWER MODULE WITH 36V MAXIMUM INPUT VOLTAGE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

LMZ23605 Series

The LMZ23605 SIMPLE SWITCHER®power module is an easy-to-use step-down DC – DC solution capable of driving up to 5-A load. The LMZ23605 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.

The LMZ23605 can accept an input voltage rail between 6 V and 36 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ23605 only requires two external resistors and three external capacitors to complete the power solution. The LMZ23605 is a reliable and robust design with the following protection features: thermal shutdown, programmable input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. The sync input allows synchronization over the 650- to 950-kHz switching frequency range.

Technical Specifications

Parameters and characteristics for this part

Specification	LMZ23605TZE/NOPB

Applications	ITE (Commercial)
Current - Output (Max)	5 A
Efficiency	92 %
Features	OCP, SCP, OVP, OTP, UVLO
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	TO-PMOD-7, Power Module
Package Name	TO-PMOD-7
Size / Dimension Height	0.17 in
Size / Dimension Length	0.4 in
Size / Dimension Width	0.4 in
Type	Non-Isolated PoL Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	6 V
Voltage - Output 1 (Max)	6 V
Voltage - Output 1 (Min)	800 mV

LMZ23605 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Mounting Type	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Type	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Package Name	Applications	Features	Current - Output (Max)	Voltage - Input (Min)	Efficiency	Number of Outputs	Voltage - Input (Max)	Supplied Contents	Board Type	Total Output Count	Output Type	Non-Isolated Output Count	Regulator Topology	Frequency - Switching	Utilized IC / Part	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Current - Output	Main Purpose	Voltage - Output	Contents	Frequency - Switching (Min)	Frequency - Switching (Max)
Texas Instruments LMZ23605TZE/NOPB	125 °C	-40 °C	Power Module TO-PMOD-7	Surface Mount	800 mV	6 V	Non-Isolated PoL Module	0.17 in	0.4 in	0.4 in	TO-PMOD-7	ITE (Commercial)	OCP OTP OVP SCP UVLO	5 A	6 V	92 %	1	36 V

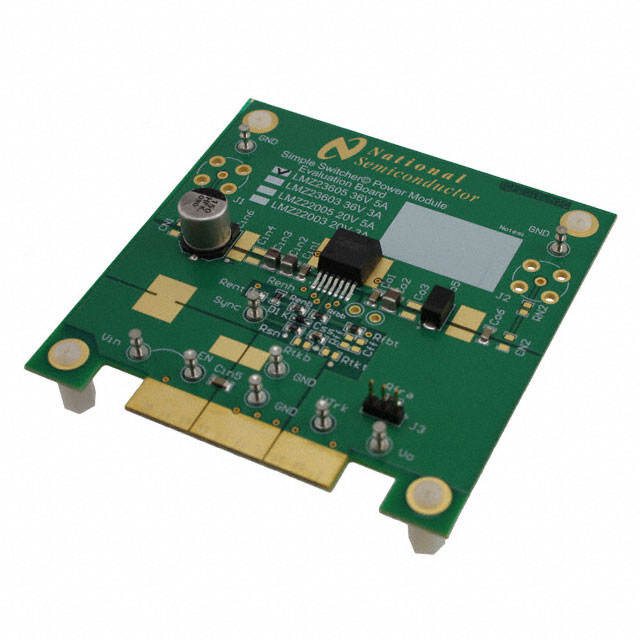

Texas Instruments LMZ23605EVAL/NOPB																			Board(s)	Fully Populated	1	Non-Isolated	1 count	Buck	812 kHz	LMZ23605	6 V	36 V	5 A	DC/DC Step Down	3.3 V	Board
Texas Instruments LMZ23605TZX/NOPB	125 °C	-40 °C	Power Module TO-PMOD-7	Surface Mount	800 mV	6 V	Non-Isolated PoL Module	0.18 in	0.4 in	0.39 in	TO-PMOD-7	ITE (Commercial)	UVLO	5 A	6 V	92 %	1	36 V
Texas Instruments LMZ23605DEMO/NOPB																			Board(s)	Fully Populated	1	Non-Isolated	1 count	Buck		LMZ23605	6 V	36 V	5 A	DC/DC Step Down	3.3 V	Board	650 kHz	950 kHz
Texas Instruments LMZ23605TZ/NOPB	125 °C	-40 °C	Power Module TO-PMOD-7	Surface Mount	800 mV	6 V	Non-Isolated PoL Module	0.18 in	0.4 in	0.39 in	TO-PMOD-7	ITE (Commercial)	UVLO	5 A	6 V	92 %	1	36 V
