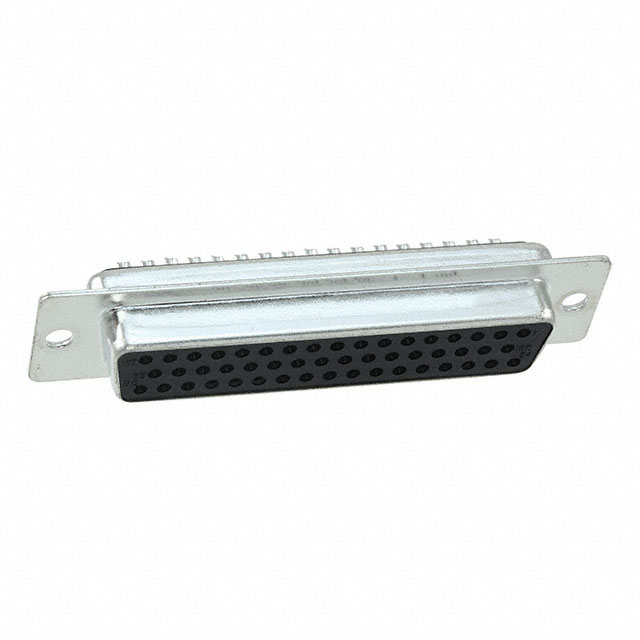

L77SDD50S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 50POS SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
L77SDD50S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 50POS SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L77SDD50S |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 5 |
| Voltage Rating | 250 VDC |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.28 | |
| 10 | $ 2.98 | |||
| 25 | $ 2.82 | |||
| 40 | $ 2.76 | |||
| 80 | $ 2.63 | |||
| 240 | $ 2.30 | |||
| 440 | $ 2.23 | |||
| 960 | $ 1.90 | |||
| 2400 | $ 1.77 | |||
Description
General part information
L77SDD50 Series
50 Position D-Sub Receptacle, Female Sockets Connector
