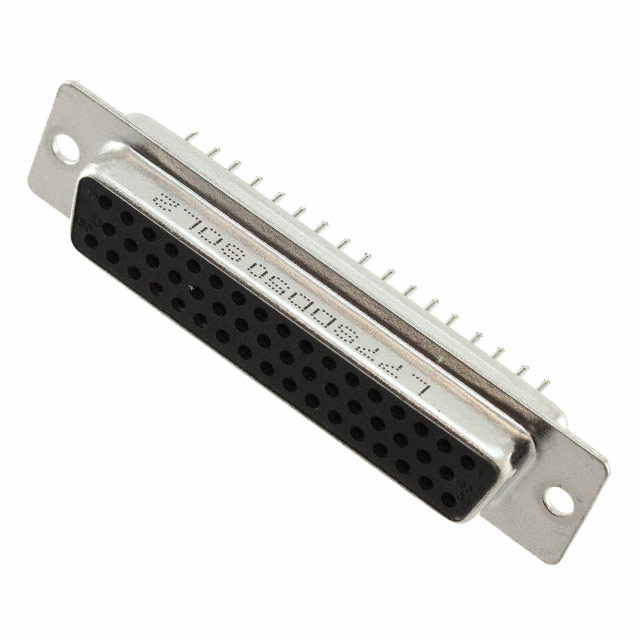

L77SDD50SOL2

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 50POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 50POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDD50SOL2

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	250 VDC

Part	Wire Gauge	Connector Type	Voltage Rating	Color	Dielectric Material	Current Rating (Amps)	Number of Rows	Contact Type	Shell Size, Connector Layout	Contact Material	Material Flammability Rating	Flange Feature	Mounting Type	Connector Style	Contact Finish Thickness	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Number of Positions	Termination
Amphenol ICC (Commercial Products) L77SDD50S	20 AWG	Receptacle Female Sockets	250 VDC	Black	Thermoplastic Glass Filled	3 A	3	Signal	5	Brass	UL94 V-0	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	D-Sub	Flash	Gold	105 ░C	-55 °C	Stamped	50
Amphenol ICC (Commercial Products) L77SDD50SVFM		Receptacle Female Sockets	250 VDC	Black	Thermoplastic Glass Filled	3 A	3	Signal	5	Phosphor Bronze	UL94 V-0	Female Screwlock (M3) Mating Side	Free Hanging (In-Line)	D-Sub	Flash	Gold	125 °C	-55 °C	Stamped	50
Amphenol ICC (Commercial Products) L77SDD50SOL2		Receptacle Female Sockets	250 VDC	Black	Thermoplastic Glass Filled	3 A	3	Signal	5	Phosphor Bronze	UL94 V-0	Housing/Shell (Unthreaded)	Through Hole	D-Sub	Flash	Gold	125 °C	-55 °C	Stamped	50	Solder
Amphenol ICC (Commercial Products) L77SDD50SOL2R210		Receptacle Female Sockets	250 VDC	Black	Thermoplastic Glass Filled	3 A	3	Signal	5	Phosphor Bronze	UL94 V-0	Housing/Shell (Unthreaded)	Through Hole	D-Sub	Flash	Gold	125 °C	-55 °C	Stamped	50	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
