Description

General part information

ADS127L21 Series

The ADS127L21 is a 24-bit, delta-sigma (ΔΣ), analog-to-digital converter (ADC) featuring a programmable digital filter. This digital filter has data rates up to 512kSPS using the wideband filter and up to 1365kSPS using the low-latency filter. The device offers an excellent combination of ac performance and dc precision with low power consumption.

Programmable infinite and finite impulse response (IIR and FIR) digital filters allow custom filter profiles, such as A-weighting compensation and frequency notch filters. The wideband or low-latency filter option optimize ac-signal performance or data throughput of dc signals, all in one device.

The low-drift modulator achieves excellent dc precision with low wideband noise for outstanding ac performance. The power-scalable architecture features four speed modes to optimize data rate, resolution, and power consumption. Signal and reference input buffers reduce driver loading for increased accuracy.

Technical Specifications

Parameters and characteristics for this part

Specification	ADS127L21IRUKT

Architecture	Sigma-Delta
Configuration	ADC
Data Interface	SPI
Features	Internal Oscillator, Programmable Filter
Input Type	Single Ended, Differential
Mounting Type	Surface Mount
Number of A/D Converters	1 count
Number of Bits	24 bits
Number of Inputs	1, 2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	20-WFQFN Exposed Pad
Package Length	3 mm
Package Name	20-WQFN
Package Width	3 mm
Ratio - ADC	1
Ratio - S/H	0
Reference Type	External
Sampling Rate (Per Second)	1.365 MHz
Voltage - Supply, Analog (Max)	5.5 V
Voltage - Supply, Analog (Min)	2.85 V
Voltage - Supply, Digital (Max)	5.5 V
Voltage - Supply, Digital (Min)	1.65 V

ADS127L21 Series

Part	Architecture	Sampling Rate (Per Second)	Mounting Type	Reference Type	Number of A/D Converters	Number of Inputs	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Configuration	Ratio - ADC	Ratio - S/H	Package / Case	Features	Package Length	Package Name	Package Width	Data Interface	Number of Bits	Input Type	Supplied Contents	Input Range	Contents	Power (Typ)	Utilized IC / Part
Texas Instruments ADS127L21IRUKT	Sigma-Delta	1.365 MHz	Surface Mount	External	1 count	1 2	125 °C	-40 °C	5.5 V	1.65 V	5.5 V	2.85 V	ADC	1	0	20-WFQFN Exposed Pad	Internal Oscillator Programmable Filter	3 mm	20-WQFN	3 mm	SPI	24 bits	Differential Single Ended

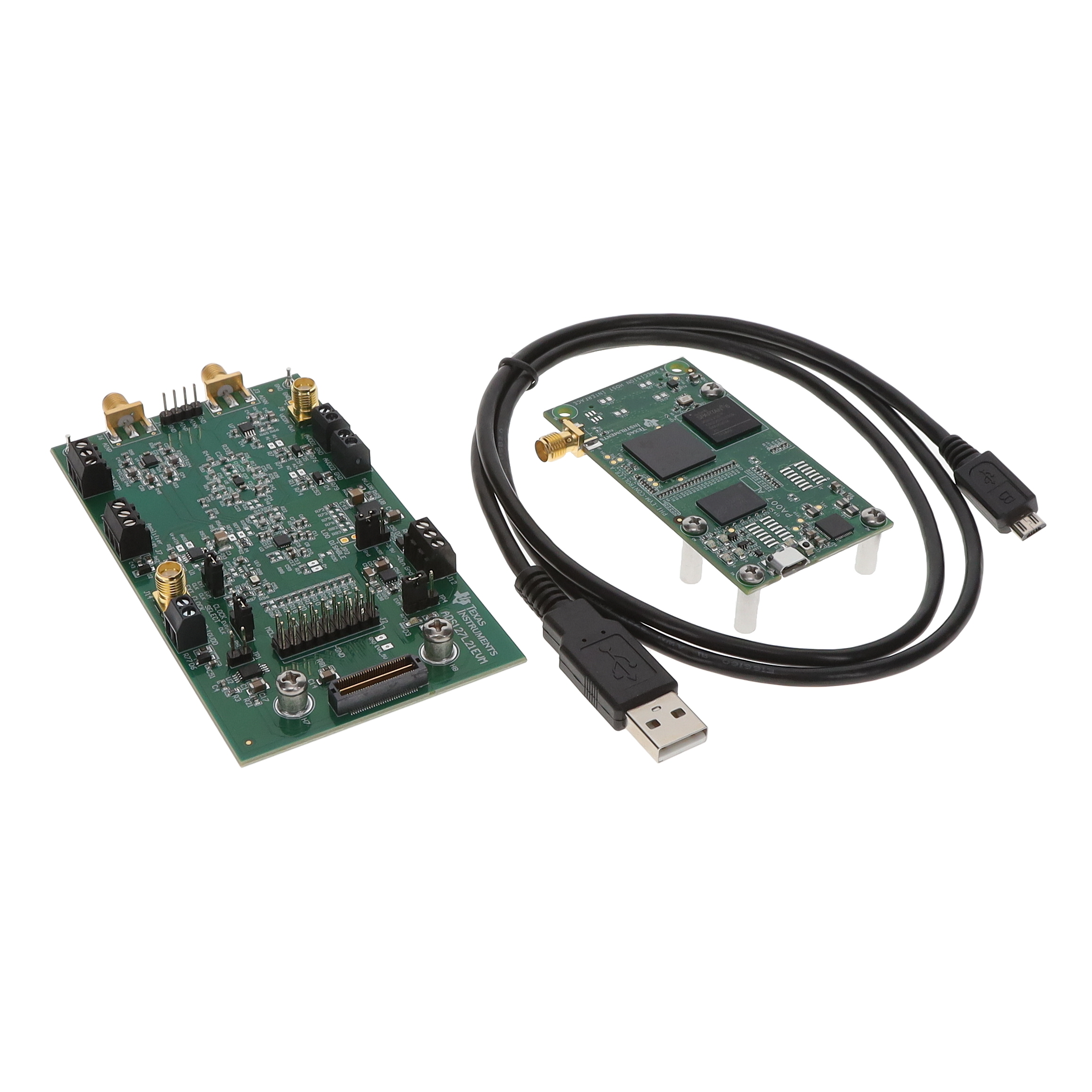

Texas Instruments ADS127L21EVM-PDK		512 kHz			1 count																Serial SPI	24 bits		Board(s)	±VREF	Board	32.8 mW	ADS127L21
Texas Instruments ADS127L21IRUKR	Sigma-Delta	1.365 MHz	Surface Mount	External	1 count	1 2	125 °C	-40 °C	5.5 V	1.65 V	5.5 V	2.85 V	ADC	1	0	20-WFQFN Exposed Pad	Internal Oscillator Programmable Filter	3 mm	20-WQFN	3 mm	SPI	24 bits	Differential Single Ended
