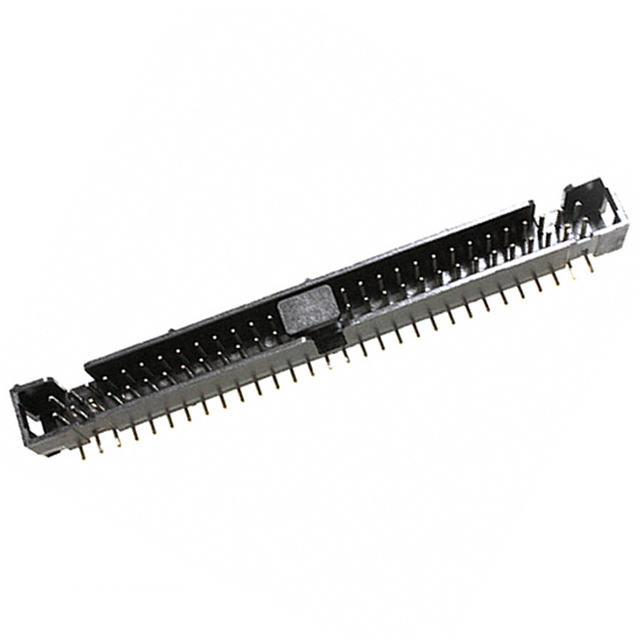

N2560-6V0C-RB-WH

Active

CONN HEADER SMD 60POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2560-6V0C-RB-WH

Active

CONN HEADER SMD 60POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2560-6V0C-RB-WH	N2560 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.84 mm
Contact Length - Post	-	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	-	0.338 in
Insulation Height	-	8.59 mm
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled, Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Surface Mount, Through Hole, Right Angle
Number of Positions	60	60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2560 Series

CONN HEADER VERT 60POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Connector Type	Contact Shape	Shrouding	Number of Positions Loaded	Style	Current Rating (Amps)	Insulation Material	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Features	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Fastening Type	Insulation Height	Insulation Height
3M N2560-6002UB	200 µin	5.08 µm	Solder	0.1 in	2.54 mm	9.91 mm	0.39 in	60	Tin-Lead	Gold	2	2.84 mm	0.112 in	Header	Square	Shrouded - 4 Wall	All	Board to Board, Cable	1.75 A	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	UL94 V-0	2.54 mm	0.1 in	Black	Keying Slot	Through Hole	30 Áin	0.76 Ám	Copper Alloy	105 ░C	-55 °C	Male Pin	Push-Pull
3M N2560-6V0C-RB-WH	200 µin	5.08 µm	Solder	0.1 in	2.54 mm	9.91 mm	0.39 in	60	Tin	Gold	2			Header	Square	Shrouded - 4 Wall	All	Board to Board, Cable	1.75 A	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	UL94 V-0	2.54 mm	0.1 in	Black	Keying Slot, Pick and Place	Surface Mount	30 Áin	0.76 Ám	Copper Alloy	105 ░C	-55 °C	Male Pin	Push-Pull
3M N2560-6002-UG	200 µin	5.08 µm	Solder	0.1 in	2.54 mm	9.91 mm	0.39 in	60	Tin-Lead	Gold	2	2.84 mm	0.112 in	Header	Square	Shrouded - 4 Wall	All	Board to Board, Cable	1.75 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	UL94 V-0	2.54 mm	0.1 in	Black	Keying Slot	Through Hole	15 µin	0.38 µm	Copper Alloy	105 ░C	-55 °C	Male Pin	Push-Pull
3M N2560-5002-RB	200 µin	5.08 µm	Solder	0.1 in	2.54 mm			60	Tin	Gold	2	2.84 mm	0.112 in	Header	Square	Shrouded - 4 Wall	All	Board to Board, Cable	1.75 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	UL94 V-0	2.54 mm	0.1 in	Black	Keying Slot	Through Hole, Right Angle	30 Áin	0.76 Ám	Copper Alloy	105 ░C	-55 °C	Male Pin	Push-Pull	0.338 in	8.59 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	600	$ 5.46

Description

General part information

N2560 Series

Connector Header Surface Mount 60 position 0.100" (2.54mm)
