N2560-5002-RB

Active

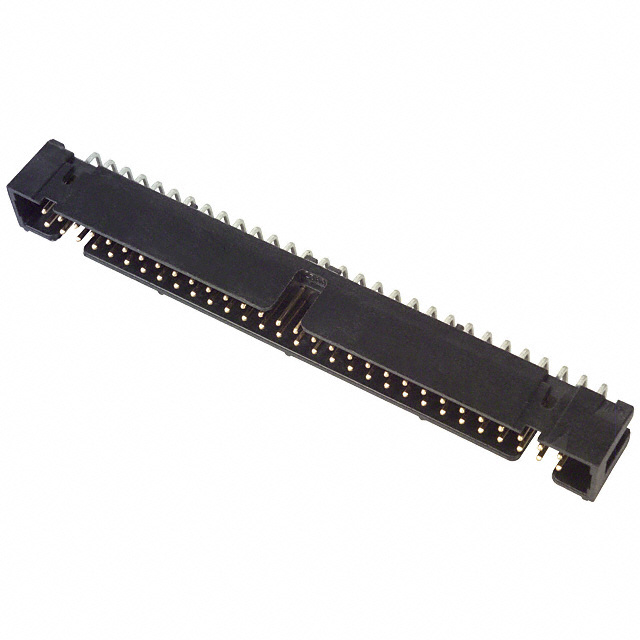

CONN HEADER R/A 60POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2560-5002-RB

Active

CONN HEADER R/A 60POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.18
		10	$ 5.59
		168	$ 4.89
		504	$ 4.12
		1008	$ 3.61

Description

General part information

N2560 Series

Connector Header Through Hole, Right Angle 60 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2560-5002-RB	N2560 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.338 in	0.338 in
Insulation Height	8.59 mm	8.59 mm
Insulation Height	-	9.91 mm
Insulation Height	-	0.39 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled, Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Surface Mount, Through Hole, Right Angle
Number of Positions	60	60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2560 Series

CONN HEADER VERT 60POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Connector Type	Contact Shape	Shrouding	Number of Positions Loaded	Style	Current Rating (Amps)	Insulation Material	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Features	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Fastening Type	Insulation Height	Insulation Height
3M N2560-6002UB	200 µin	5.08 µm	Solder	0.1 in	2.54 mm	9.91 mm	0.39 in	60	Tin-Lead	Gold	2	2.84 mm	0.112 in	Header	Square	Shrouded - 4 Wall	All	Board to Board, Cable	1.75 A	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	UL94 V-0	2.54 mm	0.1 in	Black	Keying Slot	Through Hole	30 Áin	0.76 Ám	Copper Alloy	105 ░C	-55 °C	Male Pin	Push-Pull
3M N2560-6V0C-RB-WH	200 µin	5.08 µm	Solder	0.1 in	2.54 mm	9.91 mm	0.39 in	60	Tin	Gold	2			Header	Square	Shrouded - 4 Wall	All	Board to Board, Cable	1.75 A	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	UL94 V-0	2.54 mm	0.1 in	Black	Keying Slot, Pick and Place	Surface Mount	30 Áin	0.76 Ám	Copper Alloy	105 ░C	-55 °C	Male Pin	Push-Pull
3M N2560-6002-UG	200 µin	5.08 µm	Solder	0.1 in	2.54 mm	9.91 mm	0.39 in	60	Tin-Lead	Gold	2	2.84 mm	0.112 in	Header	Square	Shrouded - 4 Wall	All	Board to Board, Cable	1.75 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	UL94 V-0	2.54 mm	0.1 in	Black	Keying Slot	Through Hole	15 µin	0.38 µm	Copper Alloy	105 ░C	-55 °C	Male Pin	Push-Pull
3M N2560-5002-RB	200 µin	5.08 µm	Solder	0.1 in	2.54 mm			60	Tin	Gold	2	2.84 mm	0.112 in	Header	Square	Shrouded - 4 Wall	All	Board to Board, Cable	1.75 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	UL94 V-0	2.54 mm	0.1 in	Black	Keying Slot	Through Hole, Right Angle	30 Áin	0.76 Ám	Copper Alloy	105 ░C	-55 °C	Male Pin	Push-Pull	0.338 in	8.59 mm
