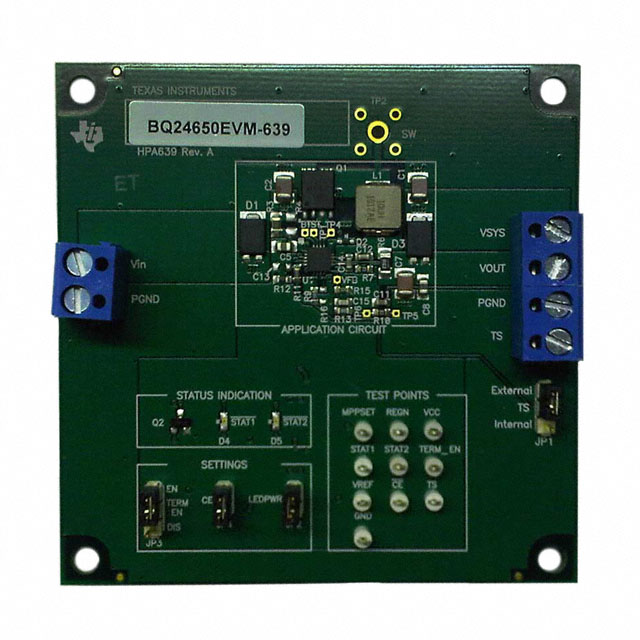

BQ24650EVM-639
ActiveEVAL MODULE FOR BQ24650
Deep-Dive with AI
Search across all available documentation for this part.
BQ24650EVM-639
ActiveEVAL MODULE FOR BQ24650
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24650EVM-639 | BQ24650 Series |
|---|---|---|
| Battery Chemistry | - | Multi-Chemistry |
| Embedded | False | False |
| Fault Protection | - | Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 16-VFQFN Exposed Pad |
| Primary Attributes | Battery Charge Controller for Solar Power | Battery Charge Controller for Solar Power |
| Primary Attributes [Max] | 28 V | 28 V |
| Primary Attributes [Min] | 5 V | 5 V |
| Programmable Features | - | Current |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 3.5 |
| Supplier Device Package | - | 3.5 |
| Supplier Device Package | - | 16-VQFN |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24650 | BQ24650 |
| Voltage - Supply (Max) | - | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 118.80 | |
BQ24650 Series
Standalone 1-6 cell Buck battery charge controller with solar input and integrated MPPT
| Part | Function | Utilized IC / Part | Primary Attributes [Min] | Primary Attributes [Max] | Primary Attributes | Supplied Contents | Type | Embedded | Secondary Attributes | Fault Protection | Mounting Type | Voltage - Supply (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Package / Case | Programmable Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24650EVM-639 | Battery Charger | BQ24650 | 5 V | 28 V | Battery Charge Controller for Solar Power | Board(s) | Power Management | On-Board LEDs | ||||||||||||
Texas Instruments BQ24650RVAT | Over Temperature, Over Voltage | Surface Mount | 28 V | 85 °C | -40 °C | Multi-Chemistry | 3.5 | 3.5 | 16-VQFN | 16-VFQFN Exposed Pad | Current |
Description
General part information
BQ24650 Series
The BQ24650 device is a highly integrated switch-mode battery charge controller. It provides input voltage regulation, which reduces charge current when input voltage falls below a programmed level. When the input is powered by a solar panel, the input regulation loop lowers the charge current so that the solar panel can provide maximum power output.
The BQ24650 offers a constant-frequency synchronous PWM controller with high accuracy current and voltage regulation, charge preconditioning, charge termination, and charge status monitoring.
The BQ24650 charges the battery in three phases: pre-conditioning, constant current, and constant voltage. Charge is terminated when the current reaches 1/10 of the fast charge rate. The pre-charge timer is fixed at 30 minutes. The BQ24650 automatically restarts the charge cycle if the battery voltage falls below an internal threshold and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.
