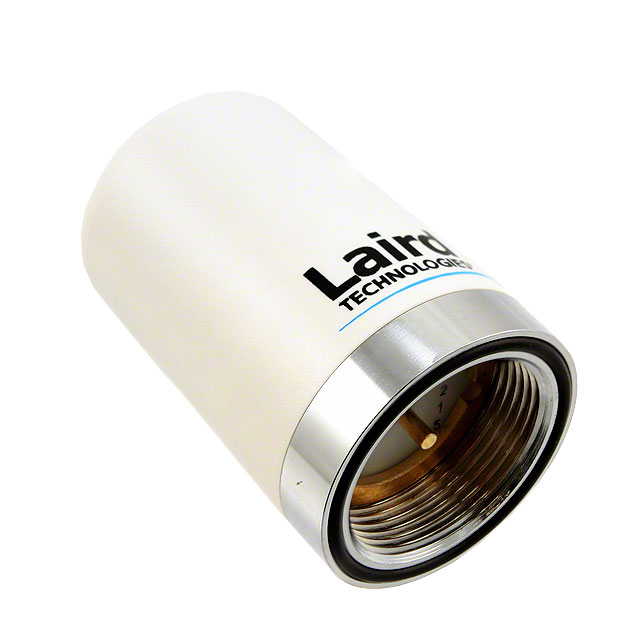

TRA8903N

Active

TE Connectivity Raychem Cable Protection

RF ANT 900MHZ DOME NMO BASE MT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RF ANT 900MHZ DOME NMO BASE MT

Technical Specifications

Parameters and characteristics for this part

Part	Frequency (Center/Band)	VSWR	Number of Bands	Applications	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Height (Max) [Max] [z]	Height (Max)	RF Family/Standard	Power - Max [Max]	Gain	Termination	Mounting Type
TE Connectivity Raychem Cable Protection TRA8903NP	900 MHz	2	1	GSM	960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm	Cellular	100 W	3 dBi	N Type Female
TE Connectivity Raychem Cable Protection TRA8903P	900 MHz	2	1	GSM	960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm	Cellular	100 W	3 dBi	N Type Female
TE Connectivity Raychem Cable Protection TRA8903N	900 MHz	2	1	GSM	960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm	Cellular	100 W	3 dBi	NMO	Base Mount
TE Connectivity Raychem Cable Protection TRA8903NP	900 MHz	2	1	GSM	960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm	Cellular	100 W	3 dBi	N Type Female
TE Connectivity Raychem Cable Protection TRA8903PT83SM	925 MHz		1		960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm		150 W	3 dBi	NMO	Base Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 40.29

General part information

RF ANTENNA GSM Dome NMO Base Mount

Technical documentation and resources

No documents available
