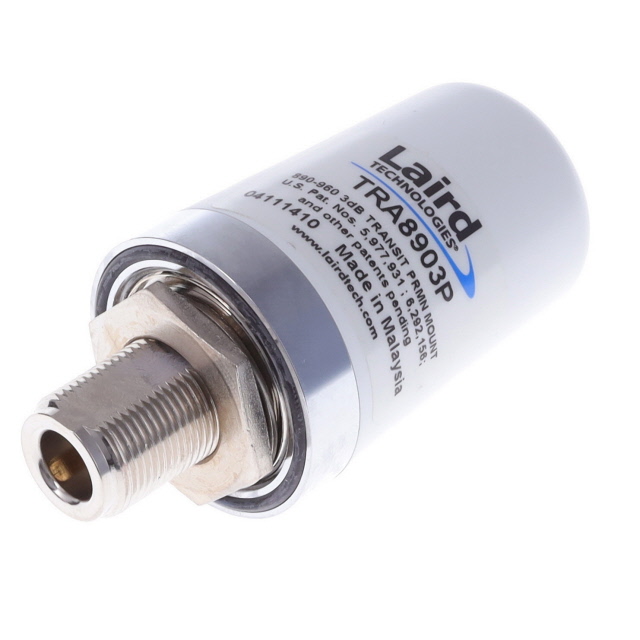

TRA8903P

Active

TE Connectivity Raychem Cable Protection

RF ANT 900MHZ DOME N FEM PAN MT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RF ANT 900MHZ DOME N FEM PAN MT

Technical Specifications

Parameters and characteristics for this part

Part	Frequency (Center/Band)	VSWR	Number of Bands	Applications	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Height (Max) [Max] [z]	Height (Max)	RF Family/Standard	Power - Max [Max]	Gain	Termination	Mounting Type
TE Connectivity Raychem Cable Protection TRA8903NP	900 MHz	2	1	GSM	960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm	Cellular	100 W	3 dBi	N Type Female
TE Connectivity Raychem Cable Protection TRA8903P	900 MHz	2	1	GSM	960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm	Cellular	100 W	3 dBi	N Type Female
TE Connectivity Raychem Cable Protection TRA8903N	900 MHz	2	1	GSM	960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm	Cellular	100 W	3 dBi	NMO	Base Mount
TE Connectivity Raychem Cable Protection TRA8903NP	900 MHz	2	1	GSM	960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm	Cellular	100 W	3 dBi	N Type Female
TE Connectivity Raychem Cable Protection TRA8903PT83SM	925 MHz		1		960 MHz	890 MHz	Dome	1 GHz	300 MHz	2.7 in	68.58 mm		150 W	3 dBi	NMO	Base Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 31.15

General part information

RF ANTENNA GSM Dome N Type Female Panel Mount

Technical documentation and resources

No documents available
