HDTM-4-06-1-S-VT-0-1
ActiveSamtec Inc.

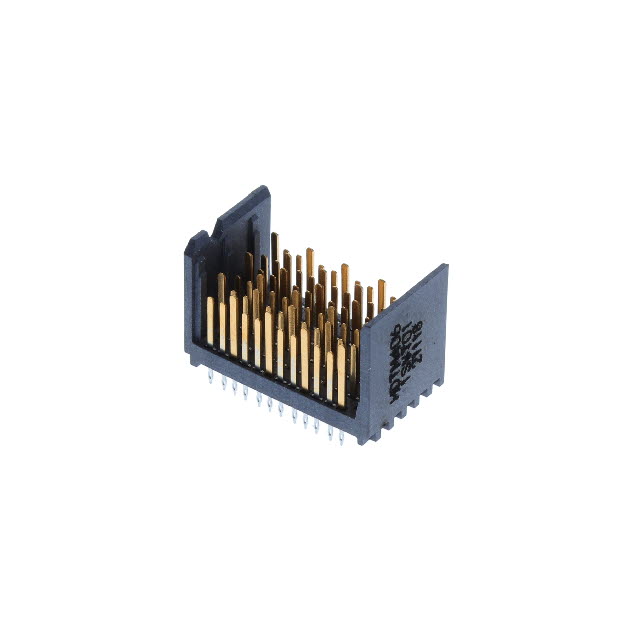

HIGH SPEED / MODULAR CONNECTORS XCEDE HD 1.80 MM HIGH-DENSITY BACKPLANE VERTICAL HEADER
Deep-Dive with AI
Search across all available documentation for this part.
HDTM-4-06-1-S-VT-0-1
ActiveSamtec Inc.
HIGH SPEED / MODULAR CONNECTORS XCEDE HD 1.80 MM HIGH-DENSITY BACKPLANE VERTICAL HEADER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDTM-4-06-1-S-VT-0-1 |
|---|---|
| Connector Style | XCede® |
| Connector Type | Male Blades, Header |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Mounting Type | Through Hole |
| Number of Columns | 6 |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Termination | Press-Fit |
HDTM-3 Series
High Speed / Modular Connectors XCede HD 1.80 mm High-Density Backplane Vertical Header
| Part | Contact Finish | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Connector Usage | Termination | Connector Type | Number of Columns | Connector Style | Mounting Type | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Voltage Rating | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Gold | All | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Backplane | Press-Fit | Header Male Blades | 6 | XCede® | Through Hole | 36 | |||||
Samtec Inc. | Gold | All | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Backplane | Press-Fit | Header Male Blades | 8 | XCede® | Through Hole | 36 | 0.071 in | 1.8 mm | 6 | 48 VAC | |
Samtec Inc. | Gold | All | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Backplane | Press-Fit | Header Male Blades | 6 | XCede® | Through Hole | 48 | |||||
Samtec Inc. | Gold | All | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Backplane | Press-Fit | Header Male Blades | 8 | XCede® | Through Hole | 64 | Black | ||||
Samtec Inc. | Gold | All | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Backplane | Press-Fit | Header Male Blades | 6 | XCede® | Through Hole | 36 | 0.071 in | 1.8 mm | 6 | 48 VAC | |
Samtec Inc. | Gold | All | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Backplane | Press-Fit | Header Male Blades | 4 | XCede® | Through Hole | 24 | 0.071 in | 1.8 mm | 6 | 48 VAC | |
Samtec Inc. | Gold | All | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Backplane | Press-Fit | Header Male Blades | 4 | XCede® | Through Hole | 0.071 in | 1.8 mm | 8 | 48 VAC | ||
Samtec Inc. | Gold | All | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Backplane | Press-Fit | Header Male Blades | 4 | XCede® | Through Hole | 24 | 0.071 in | 1.8 mm | 6 | 48 VAC |
