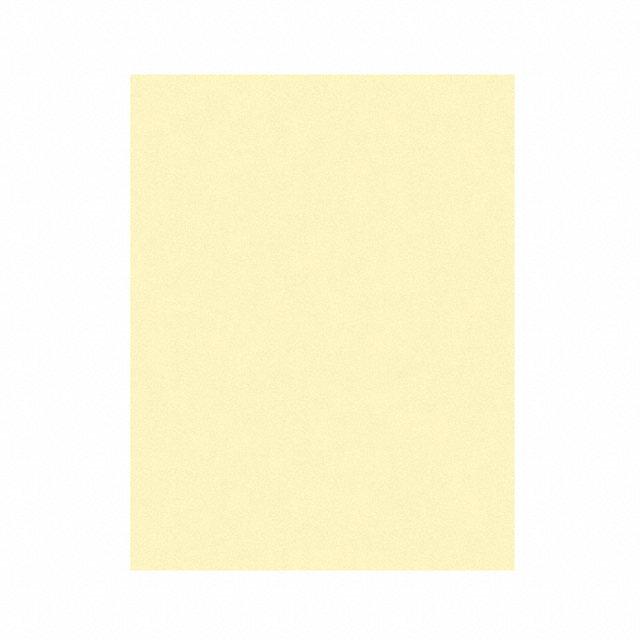

12MIC 3M266X TP SHEET 8.5X11"

Active

3M (TC)

LAPPING FILM ALUM OX 12U 11X8.5"

Search across all available documentation for this part.

Active

3M (TC)

LAPPING FILM ALUM OX 12U 11X8.5"

Technical Specifications

Parameters and characteristics for this part

Specification	12MIC 3M266X TP SHEET 8.5X11"

Abrasive Material	Aluminum Oxide
Applications	Fiber Optic Connector Polishing
Color	Yellow
Length	279.4 mm
Length [x]	11 in
Micron Size	12 µ
Type	Lapping Film
Width	215.9 mm
Width	8.5 in

Part	Width	Width	Abrasive Material	Length	Length [x]	Micron Size	Type	Applications	Color	Diameter [diameter]	Diameter [diameter]
3M (TC) 30MIC 3M266X TP SHEET 8.5X11"	215.9 mm	8.5 in	Aluminum Oxide	279.4 mm	11 in	30 µ	Lapping Film	Fiber Optic Connector Polishing	Green
3M (TC) 9MIC 3M266X TP DISC 12"			Aluminum Oxide			9 µ	Lapping Film	Fiber Optic Connector Polishing	Blue	12 in	304.8 mm
3M (TC) 12MIC 3M266X TP SHEET 8.5X11"	215.9 mm	8.5 in	Aluminum Oxide	279.4 mm	11 in	12 µ	Lapping Film	Fiber Optic Connector Polishing	Yellow
3M (TC) 12MIC 3M266X TP DISC 12"			Aluminum Oxide			12 µ	Lapping Film	Fiber Optic Connector Polishing	Yellow	12 in	304.8 mm
3M (TC) 12MIC 3M266X TP DISC 10"			Aluminum Oxide			12 µ	Lapping Film	Fiber Optic Connector Polishing	Yellow	10 in	254 mm
3M (TC) 9MIC 3M266X TP DISC 8"			Aluminum Oxide			9 µ	Lapping Film	Fiber Optic Connector Polishing	Blue	8 in	203.2 mm
3M (TC) 12MIC 3M266X TP DISC 8"			Aluminum Oxide			12 µ	Lapping Film	Fiber Optic Connector Polishing	Yellow	8 in	203.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 3.08
