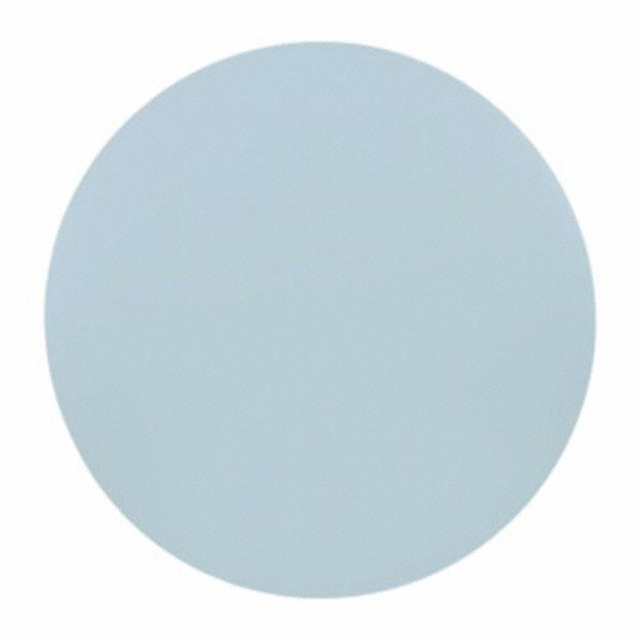

9MIC 3M266X TP DISC 12"

Active

3M (TC)

LAPPING FILM ALUM OXIDE 9U 12"

Search across all available documentation for this part.

Active

3M (TC)

LAPPING FILM ALUM OXIDE 9U 12"

Technical Specifications

Parameters and characteristics for this part

Specification	9MIC 3M266X TP DISC 12"

Abrasive Material	Aluminum Oxide
Applications	Fiber Optic Connector Polishing
Color	Blue
Diameter [diameter]	12 in
Diameter [diameter]	304.8 mm
Micron Size	9 µ
Type	Lapping Film

Part	Width	Width	Abrasive Material	Length	Length [x]	Micron Size	Type	Applications	Color	Diameter [diameter]	Diameter [diameter]
3M (TC) 30MIC 3M266X TP SHEET 8.5X11"	215.9 mm	8.5 in	Aluminum Oxide	279.4 mm	11 in	30 µ	Lapping Film	Fiber Optic Connector Polishing	Green
3M (TC) 9MIC 3M266X TP DISC 12"			Aluminum Oxide			9 µ	Lapping Film	Fiber Optic Connector Polishing	Blue	12 in	304.8 mm
3M (TC) 12MIC 3M266X TP SHEET 8.5X11"	215.9 mm	8.5 in	Aluminum Oxide	279.4 mm	11 in	12 µ	Lapping Film	Fiber Optic Connector Polishing	Yellow
3M (TC) 12MIC 3M266X TP DISC 12"			Aluminum Oxide			12 µ	Lapping Film	Fiber Optic Connector Polishing	Yellow	12 in	304.8 mm
3M (TC) 12MIC 3M266X TP DISC 10"			Aluminum Oxide			12 µ	Lapping Film	Fiber Optic Connector Polishing	Yellow	10 in	254 mm
3M (TC) 9MIC 3M266X TP DISC 8"			Aluminum Oxide			9 µ	Lapping Film	Fiber Optic Connector Polishing	Blue	8 in	203.2 mm
3M (TC) 12MIC 3M266X TP DISC 8"			Aluminum Oxide			12 µ	Lapping Film	Fiber Optic Connector Polishing	Yellow	8 in	203.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 6.10
