RT071823SNH03

Active

Amphenol Sine Systems Corp

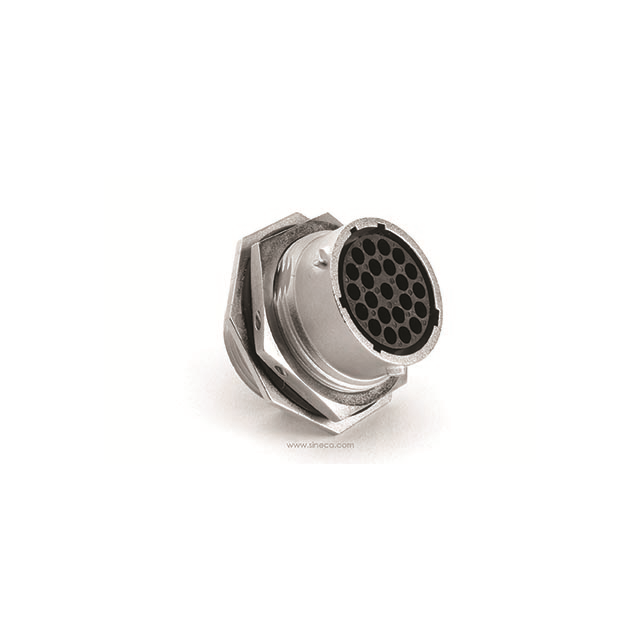

JAM NUT RECEPTACLE, FEMALE WITH

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate RM, RSSM, RM Flyer Datasheet +1

RT071823SNH03

Active

Amphenol Sine Systems Corp

JAM NUT RECEPTACLE, FEMALE WITH

Deep-Dive with AI

Documentsecomate RM, RSSM, RM Flyer Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT071823SNH03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	23
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max] [custom]	23
Shell Size - Insert [Min] [custom]	18
Shielding	Shielded
Type	For Female Sockets

RT071823 Series

Part	Contact Finish Thickness - Mating	Contact Finish - Mating	Primary Material	Voltage Rating	Mounting Feature	Color	Connector Type	Termination	Current Rating (Amps)	Fastening Type	Ingress Protection	Shell Material	Shell Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Contact Type	Contact Shape	Contact Size	Type	Note	Includes	Shielding	Housing Color	Material Flammability Rating	Insert Material	Features
Amphenol Sine Systems Corp RT071823SNH-K	Flash	Gold	Metal	250 VAC	Bulkhead - Front Side Nut	Silver	Receptacle Female Sockets	Crimp	13 A	Bayonet Lock	IP67 - Dust Tight Waterproof	Zinc Die Cast	Nickel	23	-40 °C	105 ░C	N	18	23
Amphenol Sine Systems Corp RT071823SNH03					Bulkhead - Front Side Nut		Receptacle Housing			Bayonet Lock	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	23	-40 °C	125 °C	N	18	23	Crimp	Circular	16	For Female Sockets	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	Shielded	Silver	UL94 V-0	Thermoplastic
Amphenol Sine Systems Corp RT071823PNHEC03
Amphenol Sine Systems Corp RT071823PNHEC					Bulkhead - Front Side Nut		Receptacle Housing			Bayonet Lock	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	23	-40 °C	105 ░C	N	18	23	Crimp	Circular	16	For Male Pins	Contacts Not Included	1 Connector 1 Nut 1 O-Ring	Shielded	Silver	UL94 V-0	Thermoplastic	Backshell
Amphenol Sine Systems Corp RT071823SNH					Bulkhead - Front Side Nut		Receptacle Housing			Bayonet Lock	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	23	-40 °C	105 ░C	N	18	23	Crimp	Circular	16	For Female Sockets	Contacts Not Included		Shielded	Silver	UL94 V-0	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 16.33

Description

General part information

RT071823 Series

23 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

ecomate RM, RSSM, RM Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
