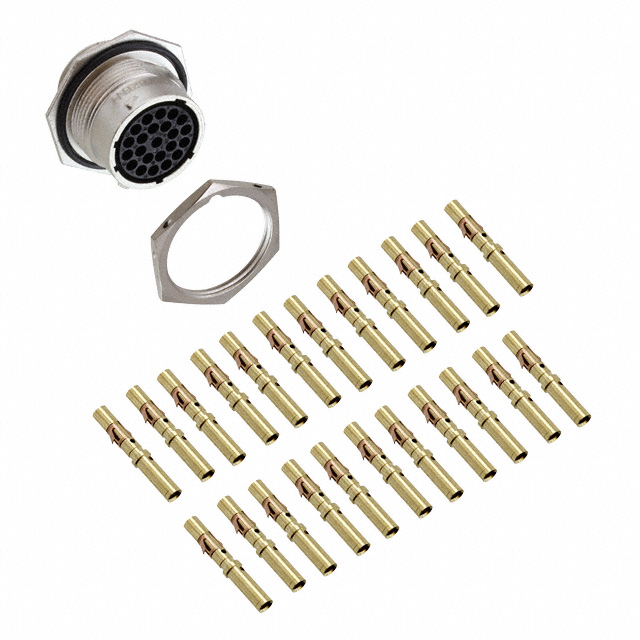

RT071823SNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 23POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate RM, RSSM, RM Flyer +1

RT071823SNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 23POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet ecomate RM, RSSM, RM Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT071823SNH-K

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	23
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert [Max] [custom]	23
Shell Size - Insert [Min] [custom]	18
Termination	Crimp
Voltage Rating	250 VAC

RT071823 Series

Part	Contact Finish Thickness - Mating	Contact Finish - Mating	Primary Material	Voltage Rating	Mounting Feature	Color	Connector Type	Termination	Current Rating (Amps)	Fastening Type	Ingress Protection	Shell Material	Shell Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Contact Type	Contact Shape	Contact Size	Type	Note	Includes	Shielding	Housing Color	Material Flammability Rating	Insert Material	Features
Amphenol Sine Systems Corp RT071823SNH-K	Flash	Gold	Metal	250 VAC	Bulkhead - Front Side Nut	Silver	Receptacle Female Sockets	Crimp	13 A	Bayonet Lock	IP67 - Dust Tight Waterproof	Zinc Die Cast	Nickel	23	-40 °C	105 ░C	N	18	23
Amphenol Sine Systems Corp RT071823SNH03					Bulkhead - Front Side Nut		Receptacle Housing			Bayonet Lock	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	23	-40 °C	125 °C	N	18	23	Crimp	Circular	16	For Female Sockets	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	Shielded	Silver	UL94 V-0	Thermoplastic
Amphenol Sine Systems Corp RT071823PNHEC03
Amphenol Sine Systems Corp RT071823PNHEC					Bulkhead - Front Side Nut		Receptacle Housing			Bayonet Lock	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	23	-40 °C	105 ░C	N	18	23	Crimp	Circular	16	For Male Pins	Contacts Not Included	1 Connector 1 Nut 1 O-Ring	Shielded	Silver	UL94 V-0	Thermoplastic	Backshell
Amphenol Sine Systems Corp RT071823SNH					Bulkhead - Front Side Nut		Receptacle Housing			Bayonet Lock	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	23	-40 °C	105 ░C	N	18	23	Crimp	Circular	16	For Female Sockets	Contacts Not Included		Shielded	Silver	UL94 V-0	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 40.45

Description

General part information

RT071823 Series

23 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

ecomate RM, RSSM, RM Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
