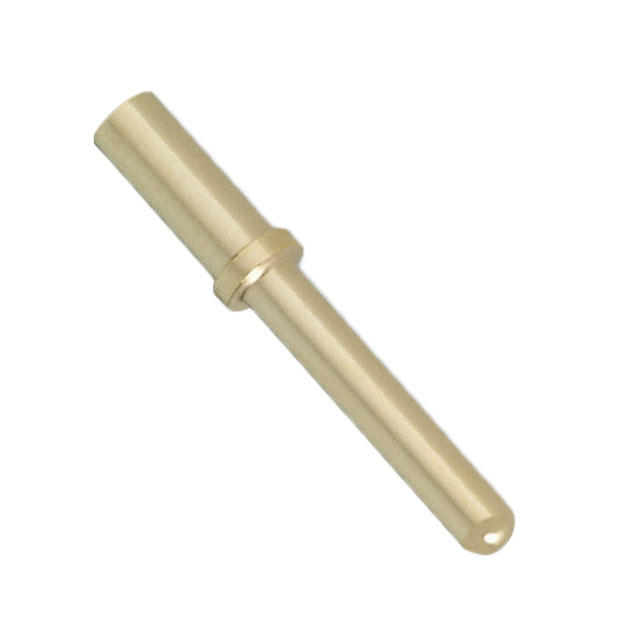

0520-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.080DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0520-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.080DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0520-0-00-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 0.46 in |
| Length - Above Flange [custom] | 11.68 mm |
| Length - Below Flange [x] | 0.25 in |
| Length - Below Flange [x] | 6.35 mm |
| Length - Overall [x] | 18.8 mm |
| Length - Overall [x] | 0.74 in |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Pin Size - Below Flange [diameter] | 2.54 mm |
| Pin Size - Below Flange [diameter] | 0.1 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.45 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.80 | |||
| 2500 | $ 0.73 | |||
Description
General part information
0520-0 Series
PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.080" (2.03mm) Dia
