0520-0-00-01-00-00-03-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .080DIA TINLEAD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .080DIA TINLEAD

Technical Specifications

Parameters and characteristics for this part

Specification	0520-0-00-01-00-00-03-0

Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Brass Alloy
Flange Diameter	3.18 mm
Flange Diameter [diameter]	0.125 in
Insulation	Non-Insulated
Length - Above Flange [custom]	0.46 in
Length - Above Flange [custom]	11.68 mm
Length - Below Flange [x]	0.25 in
Length - Below Flange [x]	6.35 mm
Length - Overall [x]	18.8 mm
Length - Overall [x]	0.74 in
Mounting Type	Free Hanging (In-Line)
Pin Size - Above Flange [diameter]	2.03 mm
Pin Size - Above Flange [diameter]	0.08 in
Pin Size - Below Flange [diameter]	2.54 mm
Pin Size - Below Flange [diameter]	0.1 in
Terminal Style	Wire
Terminal Type	PC Pin
Termination	Crimp

Part	Length - Above Flange [custom]	Length - Above Flange [custom]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Flange Diameter	Flange Diameter [diameter]	Terminal Style	Contact Finish Thickness	Contact Finish Thickness	Terminal Type	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Insulation	Contact Finish	Contact Material	Termination	Length - Overall [x]	Length - Overall [x]	Mounting Type
Mill-Max Manufacturing Corp. 0520-0-00-80-00-00-03-0	0.46 in	11.68 mm	2.54 mm	0.1 in	0.25 in	6.35 mm	3.18 mm	0.125 in	Wire	200 Áin	5.08 Ám	PC Pin	2.03 mm	0.08 in	Non-Insulated	Tin-Lead	Brass Alloy	Crimp	18.8 mm	0.74 in	Free Hanging (In-Line)
Mill-Max Manufacturing Corp. 0520-0-00-21-00-00-03-0	0.46 in	11.68 mm	2.54 mm	0.1 in	0.25 in	6.35 mm	3.18 mm	0.125 in	Wire	20 µin	0.51 µm	PC Pin	2.03 mm	0.08 in	Non-Insulated	Gold	Brass Alloy	Crimp	18.8 mm	0.74 in	Free Hanging (In-Line)
Mill-Max Manufacturing Corp. 0520-0-00-34-00-00-03-0	0.46 in	11.68 mm	2.54 mm	0.1 in	0.25 in	6.35 mm	3.18 mm	0.125 in	Wire	50 µin	1.27 µm	PC Pin	2.03 mm	0.08 in	Non-Insulated	Gold	Brass Alloy	Crimp	18.8 mm	0.74 in	Free Hanging (In-Line)
Mill-Max Manufacturing Corp. 0520-0-00-01-00-00-03-0	0.46 in	11.68 mm	2.54 mm	0.1 in	0.25 in	6.35 mm	3.18 mm	0.125 in	Wire	200 Áin	5.08 Ám	PC Pin	2.03 mm	0.08 in	Non-Insulated	Tin-Lead	Brass Alloy	Crimp	18.8 mm	0.74 in	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.73

General part information

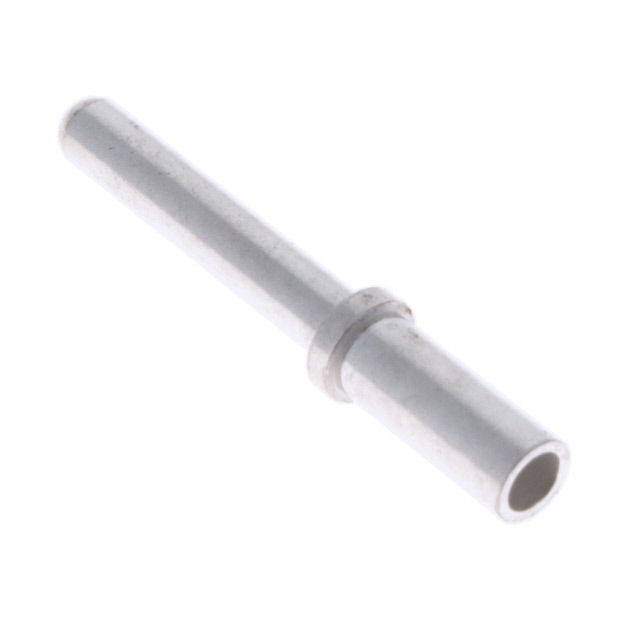

PC Pin Terminal Connector Free Hanging (In-Line) Tin-Lead 0.080" (2.03mm) Dia
