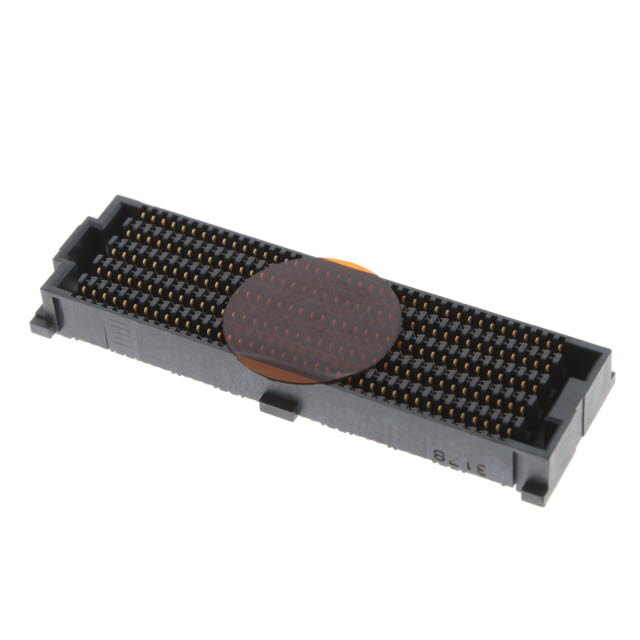

SEAF8-40-05.0-L-10-3

Active

Samtec Inc.

CONN SOCKET HS HD ARRAY

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET HS HD ARRAY

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights	Contact Finish	Height Above Board	Height Above Board	Connector Type	Number of Rows
Samtec Inc. SEAF8-40-05.0-L-04-2-K	160	Board Guide Pick and Place	10 Áin	0.25 Ám	0.8 mm	0.031 in	Surface Mount	7 mm 10 mm	Gold	4.57 mm	0.18 in	High Density Array Female
Samtec Inc. SEAF8-40-05.0-S-04-2-K	160	Board Guide Pick and Place	30 Áin	0.76 Ám	0.8 mm	0.031 in	Surface Mount	7 mm 10 mm	Gold	4.57 mm	0.18 in	High Density Array Female
Samtec Inc. SEAF8-40-1-S-10-2-RA-GP	400	Board Guide Mating Flange	30 Áin	0.76 Ám	0.8 mm	0.031 in	Surface Mount Right Angle		Gold			High Density Array Female	10
Samtec Inc. SEAF8-40-05.0-S-04-3	160	Board Guide	30 Áin	0.76 Ám	0.8 mm	0.031 in	Surface Mount	7 mm 10 mm	Gold	4.57 mm	0.18 in	High Density Array Female
Samtec Inc. SEAF8-40-05.0-L-10-3	400	Board Guide	10 Áin	0.25 Ám	0.8 mm	0.031 in	Surface Mount	7 mm 10 mm	Gold	4.57 mm	0.18 in	High Density Array Female	10
Samtec Inc. SEAF8-40-05.0-S-08-2-K	320	Board Guide Pick and Place	30 Áin	0.76 Ám	0.8 mm	0.031 in	Surface Mount	7 mm 10 mm	Gold	4.57 mm	0.18 in	High Density Array Female	8
Samtec Inc. SEAF8-40-05.0-S-06-3	240	Board Guide	30 Áin	0.76 Ám	0.8 mm	0.031 in	Surface Mount	7 mm 10 mm	Gold	4.57 mm	0.18 in	High Density Array Female	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	275	$ 22.72

General part information

400 Position Connector High Density Array, Female Surface Mount Gold
