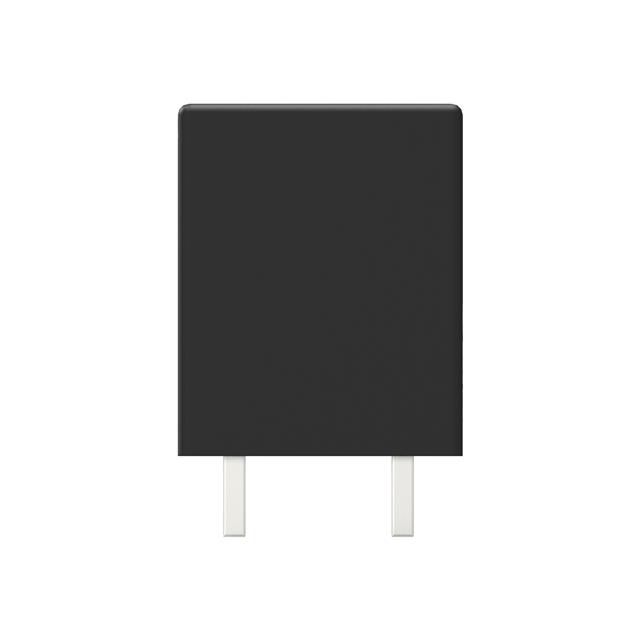

1-1393242-0

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 9V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 9V

Technical Specifications

Parameters and characteristics for this part

Part	Must Operate Voltage	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Approval Agency	Contact Form	Mounting Type	Must Release Voltage	Coil Resistance	Release Time	Coil Insulation	Coil Voltage	Seal Rating	Coil Type	Operate Time	Coil Current	Switching Voltage [Max]	Contact Rating (Current)	Load - Max Switching	Termination Style
TE Connectivity Potter & Brumfield Relays RTD14018	12.6 VDC	Silver Nickel (AgNi)	85 °C	-40 °C	General Purpose	CQC CSA cURus VDE	SPDT (1 Form C)	Through Hole	1.8 VDC	810 Ohms	6 ms	Class F	18 VDC	Sealed - Fully	Non Latching	8 ms	14.2 mA	400 VAC	16 A	6400 VA	PC Pin
TE Connectivity Potter & Brumfield Relays RTD14012F	8.4 VDC	Silver Nickel (AgNi)	85 °C	-40 °C	General Purpose	CQC CSA cURus VDE	SPDT (1 Form C)	Through Hole	1.2 VDC	360 Ohms	6 ms	Class F	12 VDC	Sealed - Fully	Non Latching	8 ms	33.3 mA	400 VAC	16 A	6400 VA	PC Pin
TE Connectivity Potter & Brumfield Relays 1-1393242-0	6.3 VDC	Silver Nickel (AgNi)	85 °C	-40 °C	General Purpose	CQC CSA cURus VDE	SPDT (1 Form C)	Through Hole	0.9 VDC	200 Ohms	6 ms	Class F	9 VDC	Sealed - Fully	Non Latching	8 ms	44.4 mA	400 VAC	16 A	6400 VA	PC Pin
TE Connectivity Potter & Brumfield Relays RTD14006	4.2 VDC	Silver Nickel (AgNi)	85 °C	-40 °C	General Purpose	CQC CSA cURus VDE	SPDT (1 Form C)	Through Hole	0.6 VDC	90 Ohms	6 ms	Class F		Sealed - Fully	Non Latching	8 ms	14.2 mA	400 VAC	16 A	6400 VA	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 3.71

General part information

General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole
