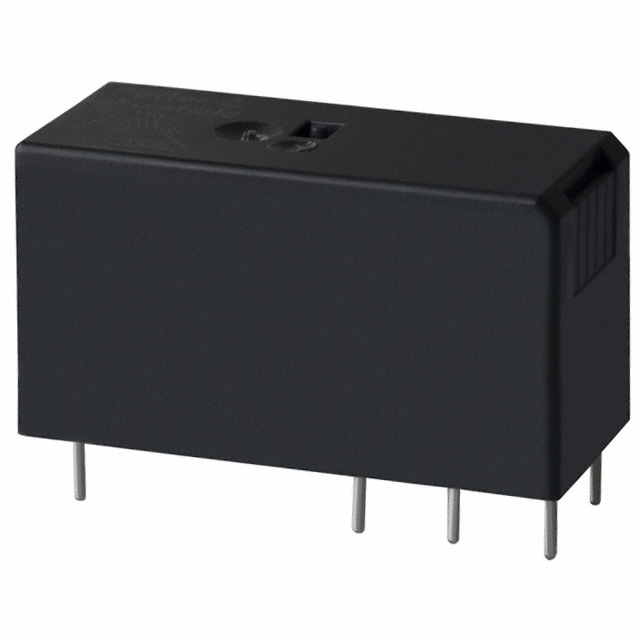

RTD14012F

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 12V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Must Operate Voltage	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Approval Agency	Contact Form	Mounting Type	Must Release Voltage	Coil Resistance	Release Time	Coil Insulation	Coil Voltage	Seal Rating	Coil Type	Operate Time	Coil Current	Switching Voltage [Max]	Contact Rating (Current)	Load - Max Switching	Termination Style
TE Connectivity Potter & Brumfield Relays RTD14018	12.6 VDC	Silver Nickel (AgNi)	85 °C	-40 °C	General Purpose	CQC CSA cURus VDE	SPDT (1 Form C)	Through Hole	1.8 VDC	810 Ohms	6 ms	Class F	18 VDC	Sealed - Fully	Non Latching	8 ms	14.2 mA	400 VAC	16 A	6400 VA	PC Pin
TE Connectivity Potter & Brumfield Relays RTD14012F	8.4 VDC	Silver Nickel (AgNi)	85 °C	-40 °C	General Purpose	CQC CSA cURus VDE	SPDT (1 Form C)	Through Hole	1.2 VDC	360 Ohms	6 ms	Class F	12 VDC	Sealed - Fully	Non Latching	8 ms	33.3 mA	400 VAC	16 A	6400 VA	PC Pin
TE Connectivity Potter & Brumfield Relays 1-1393242-0	6.3 VDC	Silver Nickel (AgNi)	85 °C	-40 °C	General Purpose	CQC CSA cURus VDE	SPDT (1 Form C)	Through Hole	0.9 VDC	200 Ohms	6 ms	Class F	9 VDC	Sealed - Fully	Non Latching	8 ms	44.4 mA	400 VAC	16 A	6400 VA	PC Pin
TE Connectivity Potter & Brumfield Relays RTD14006	4.2 VDC	Silver Nickel (AgNi)	85 °C	-40 °C	General Purpose	CQC CSA cURus VDE	SPDT (1 Form C)	Through Hole	0.6 VDC	90 Ohms	6 ms	Class F		Sealed - Fully	Non Latching	8 ms	14.2 mA	400 VAC	16 A	6400 VA	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
