10139085-081402LF
ActiveAmphenol ICC (FCI)

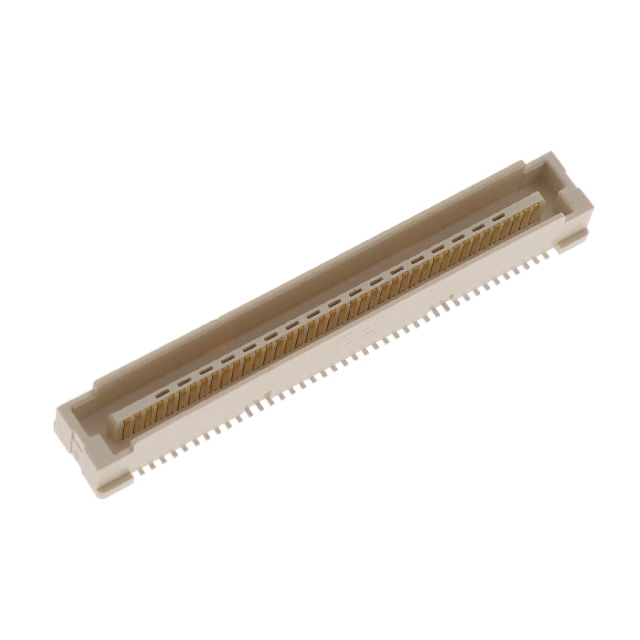

BERGSTAK+ 0.8MM, PLUG, P1, 80POS
Deep-Dive with AI
Search across all available documentation for this part.
10139085-081402LF
ActiveAmphenol ICC (FCI)
BERGSTAK+ 0.8MM, PLUG, P1, 80POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10139085-081402LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Pick and Place, Board Guide |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mated Stacking Heights | 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.88 | |
| 10 | $ 4.50 | |||
| 25 | $ 4.06 | |||
| 50 | $ 3.76 | |||
| 100 | $ 3.49 | |||
| 250 | $ 3.17 | |||
| Digi-Reel® | 1 | $ 5.88 | ||
| 10 | $ 4.50 | |||
| 25 | $ 4.06 | |||
| 50 | $ 3.76 | |||
| 100 | $ 3.49 | |||
| 250 | $ 3.17 | |||
| Tape & Reel (TR) | 900 | $ 2.79 | ||
| 1800 | $ 2.61 | |||
| 2700 | $ 2.51 | |||
Description
General part information
10139085 Series
80 Position Connector Plug, Center Strip Contacts Surface Mount Gold
