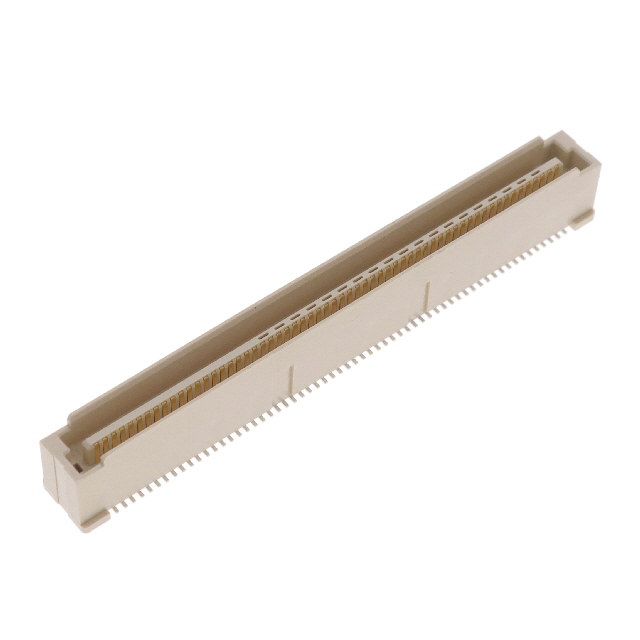

10139085-124402LF

Active

Amphenol ICC (FCI)

BERGSTAK+ 0.8MM, PLUG, P4, 120PO

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

BERGSTAK+ 0.8MM, PLUG, P4, 120PO

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Height Above Board	Height Above Board
Amphenol ICC (FCI) 10139085-084402LF	8 çin	0.203 çm	Board Guide Pick and Place	Surface Mount	0.303 in	7.7 mm	Gold	8 mm 12 mm 16 mm	0.8 mm	0.031 in	2	80
Amphenol ICC (FCI) 10139085-124402LF	8 çin	0.203 çm	Board Guide Pick and Place	Surface Mount	0.303 in	7.7 mm	Gold	8 mm 12 mm 16 mm	0.8 mm	0.031 in	2	120
Amphenol ICC (FCI) 10139085-121402LF	8 çin	0.203 çm	Board Guide Pick and Place	Surface Mount			Gold	5 mm	0.8 mm	0.031 in	2	120	4.7 mm	0.185 in
Amphenol ICC (FCI) 10139085-081402LF	8 çin	0.203 çm	Board Guide Pick and Place	Surface Mount			Gold	5 mm	0.8 mm	0.031 in	2	80	4.7 mm	0.185 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Connector Plug, Center Strip Contacts Surface Mount Gold
