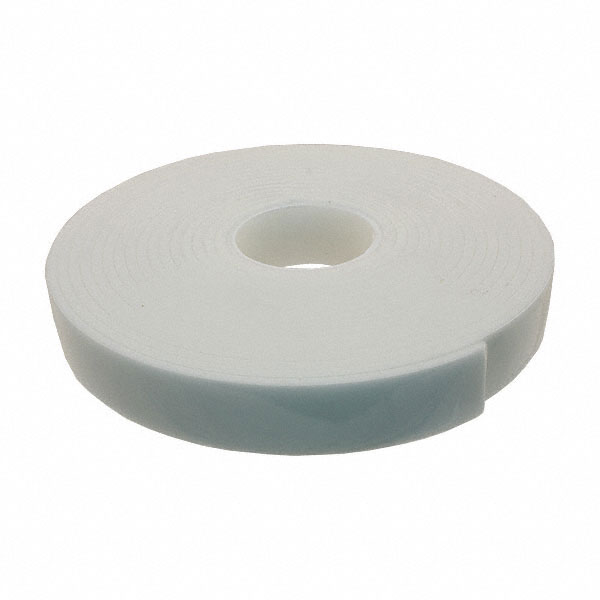

4959-0.75-5

Active

3M (TC)

TAPE DBL SIDED WHITE 3/4"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher

4959-0.75-5

Active

3M (TC)

TAPE DBL SIDED WHITE 3/4"X5YDS

Deep-Dive with AI

DocumentsDate Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4959-0.75-5

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	White
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	300 °F
Temperature Range	149 °C
Thickness	0.12 in
Thickness	120 mils
Thickness	3.048 mm
Usage	General Purpose
Width	0.75 in
Width	19.05 mm
Width	0.75 in

4959 Series

...

Part	Shelf Life Start	Tape Type	Backing, Carrier	Thickness	Thickness	Thickness	Adhesive	Shelf Life	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Usage	Temperature Range	Temperature Range	Width	Width	Width	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [y]	Width [y]	Width [x]	Width [x]	Length [x]	Length [x]
3M (TC) 4959-0.75-5	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White	General Purpose	300 °F	149 °C	0.75 in	19.05 mm	0.75 in	4.6 m	15 ft	5 yd
3M (TC) 3M 4959 0.75" X 10"-10	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C	0.75 in	19.05 mm	0.75 in	254 mm	10 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in
3M (TC) 4959-2-5	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White	General Purpose	300 °F	149 °C				4.6 m	15 ft	5 yd							2 "	50.8 mm
3M (TC) 3M 4959 4" X 10"-5	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C				254 mm	10 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			4 "	101.6 mm
3M (TC) 10-5-4959	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C			254 mm	4.6 m	15 ft	5 yd	0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			10 in
3M (TC) 4959-1-7(10)	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C				177.8 mm	7 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			1 in	25.4 mm
3M (TC) 3M 4959 10" X 10"-2	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C			254 mm	254 mm	10 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			10 in
3M (TC) 3M 4959 0.5" X 5"-25	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C	0.5 in	0.5 in	12.7 mm				0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in					5 in	127 mm
3M (TC) 3M 4959 9" X 10"-2	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C				254 mm	10 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			9 in	228.6 mm
3M (TC) 4959-0.125-5	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C	0.13 in	0.125 "	3.18 mm	4.6 m	15 ft	5 yd	0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 82.34
		10	$ 63.52
		25	$ 57.66
		50	$ 53.74
		100	$ 50.20

Description

General part information

4959 Series

Double Coated, Double Sided Tape Acrylic Adhesive White 0.75" (19.05mm) 3/4" X 15' (4.6m) 5 yds

Documents

Technical documentation and resources
