4959-2-5

Active

3M (TC)

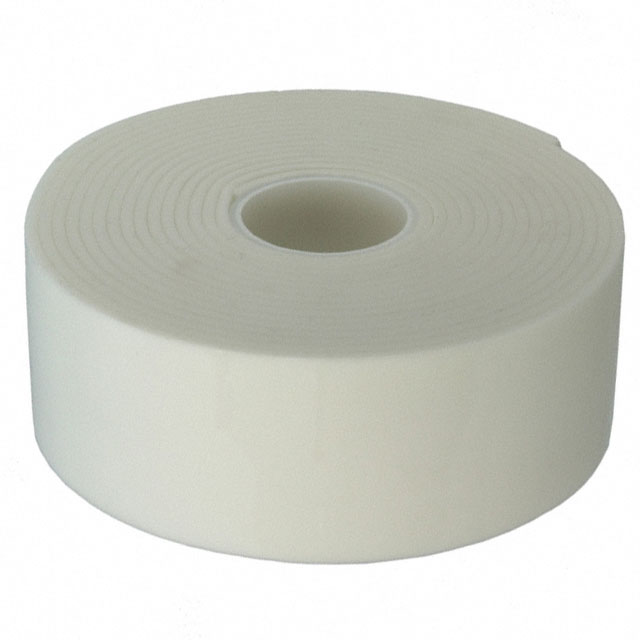

TAPE DBL SIDED WHITE 2"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher

4959-2-5

Active

3M (TC)

TAPE DBL SIDED WHITE 2"X5YDS

Deep-Dive with AI

DocumentsDate Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4959-2-5

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	White
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	300 °F
Temperature Range	149 °C
Thickness	0.12 in
Thickness	120 mils
Thickness	3.048 mm
Usage	General Purpose
Width [y]	2 "
Width [y]	50.8 mm

4959 Series

...

Part	Shelf Life Start	Tape Type	Backing, Carrier	Thickness	Thickness	Thickness	Adhesive	Shelf Life	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Usage	Temperature Range	Temperature Range	Width	Width	Width	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [y]	Width [y]	Width [x]	Width [x]	Length [x]	Length [x]
3M (TC) 4959-0.75-5	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White	General Purpose	300 °F	149 °C	0.75 in	19.05 mm	0.75 in	4.6 m	15 ft	5 yd
3M (TC) 3M 4959 0.75" X 10"-10	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C	0.75 in	19.05 mm	0.75 in	254 mm	10 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in
3M (TC) 4959-2-5	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White	General Purpose	300 °F	149 °C				4.6 m	15 ft	5 yd							2 "	50.8 mm
3M (TC) 3M 4959 4" X 10"-5	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C				254 mm	10 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			4 "	101.6 mm
3M (TC) 10-5-4959	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C			254 mm	4.6 m	15 ft	5 yd	0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			10 in
3M (TC) 4959-1-7(10)	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C				177.8 mm	7 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			1 in	25.4 mm
3M (TC) 3M 4959 10" X 10"-2	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C			254 mm	254 mm	10 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			10 in
3M (TC) 3M 4959 0.5" X 5"-25	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C	0.5 in	0.5 in	12.7 mm				0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in					5 in	127 mm
3M (TC) 3M 4959 9" X 10"-2	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C				254 mm	10 in		0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in			9 in	228.6 mm
3M (TC) 4959-0.125-5	Date of Shipment	Double Coated Double Sided	Polyester Film	0.12 in	120 mils	3.048 mm	Acrylic	24 Months	4 °C 40 °F	38 °C 100 °F	White		300 °F	149 °C	0.13 in	0.125 "	3.18 mm	4.6 m	15 ft	5 yd	0.002 "	0.051 mm	2 mils	2.997 mm	118 mils	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 142.53

Description

General part information

4959 Series

Double Coated, Double Sided Tape Acrylic Adhesive White 2.00" (50.80mm) X 15' (4.6m) 5 yds
