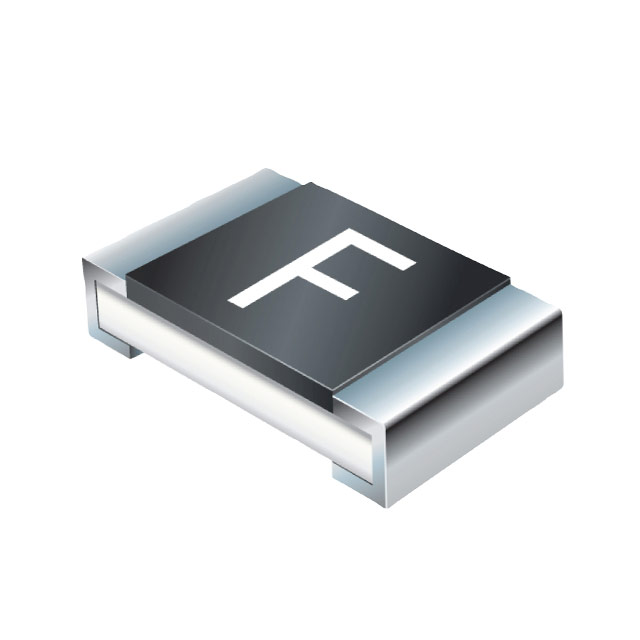

Specification	SF-1206SP050-2

Approval Agency	UL
Breaking Capacity	50 A
Current Rating	0.5 A
Fuse Type	Board Mount (Cartridge Style Excluded)
Melting I²t	0.027
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Package / Case	1206 (3216 Metric)
Response Time	Slow Blow
Size / Dimension Height	0.024 in
Size / Dimension Length	0.122 in
Size / Dimension Width	0.061 in
Voltage Rating - DC	63 V

SF-1206 Series

Part	DC Cold Resistance	Melting I²t	Approval Agency	Mounting Type	Breaking Capacity	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Fuse Type	Voltage Rating - AC	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Voltage Rating - DC	Package / Case	Response Time
Bourns Inc. SF-1206HHA1500R-2	0.0026 Ohms	77	AEC-Q200 cUL UL	Surface Mount	100 A	125 °C	-55 °C	15 A	Board Mount (Cartridge Style Excluded)	50 VAC	0.065 in	0.047 in	0.126 in	50 V	1206 (3216 Metric)
Bourns Inc. SF-1206HHA2500R-2	0.0013 Ohms	171.7	AEC-Q200 cUL UL	Surface Mount	200 A	125 °C	-55 °C	25 A	Board Mount (Cartridge Style Excluded)	50 VAC	0.065 in	0.047 in	0.126 in	50 V	1206 (3216 Metric)
Bourns Inc. SF-1206F300-2	0.023 Ohms	0.501	UL	Surface Mount	50 A	105 °C	-20 °C	3 A	Board Mount (Cartridge Style Excluded)		0.061 in	0.024 in	0.122 in	32 V	1206 (3216 Metric)	Fast Blow
Bourns Inc. SF-1206SP700-2		10.17	UL	Surface Mount	50 A	105 °C	-20 °C	7 A	Board Mount (Cartridge Style Excluded)		0.061 in	0.024 in	0.122 in	32 V	1206 (3216 Metric)	Slow Blow
Bourns Inc. SF-1206S300M-2	0.031 Ohms	0.21		Surface Mount	50 A	125 °C	-55 °C	3 A	Board Mount (Cartridge Style Excluded)		0.063 in	0.033 in	0.126 in	32 V	1206 (3216 Metric)	Slow Blow
Bourns Inc. SF-1206S100-2	0.108 Ohms	0.098	UL	Surface Mount	50 A	105 °C	-20 °C	1 A	Board Mount (Cartridge Style Excluded)		0.061 in	0.024 in	0.122 in	63 V	1206 (3216 Metric)	Slow Blow
Bourns Inc. SF-1206HHA3000R-2	0.001 Ohms	280.2	AEC-Q200 cUL UL	Surface Mount	200 A	125 °C	-55 °C	30 A	Board Mount (Cartridge Style Excluded)	50 VAC	0.065 in	0.047 in	0.126 in	50 V	1206 (3216 Metric)
Bourns Inc. SF-1206SP700M-2	0.01 Ohms	10		Surface Mount	60 A	150 °C	-55 °C	7 A	Board Mount (Cartridge Style Excluded)		0.063 in	0.038 in	0.126 in	24 V	1206 (3216 Metric)	Slow Blow
Bourns Inc. SF-1206HH2500R-2	0.0013 Ohms	171.7	cUL UL	Surface Mount	200 A	150 °C	-55 °C	25 A	Board Mount (Cartridge Style Excluded)	50 VAC	0.065 in	0.047 in	0.126 in	50 V	1206 (3216 Metric)
Bourns Inc. SF-1206S200-2	0.032 Ohms	0.339	UL	Surface Mount	50 A	105 °C	-20 °C	2 A	Board Mount (Cartridge Style Excluded)		0.061 in	0.024 in	0.122 in	63 V	1206 (3216 Metric)	Slow Blow
