17-400410

Active

Amphenol CONEC

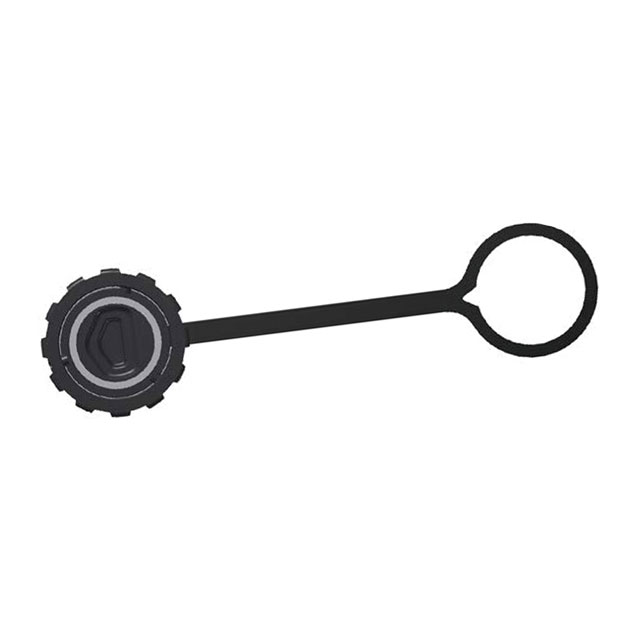

CONN PROTECTIVE COVER BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

17-400410

Active

Amphenol CONEC

CONN PROTECTIVE COVER BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-400410

Accessory Type	Cap (Cover), Protective
Color	Black
Features	Waterproof, Dust Tight, Contains Strap with Ring
For Use With/Related Products	Female Receptacle Connector, 2Pos
Material	Glass Filled, Polyamide (PA), Nylon

17-4004 Series

Part	Material	Color	Accessory Type	For Use With/Related Products	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Primary Material	Shielding	Contact Finish - Mating	Shell Material	Current Rating (Amps)	Contact Material	Mounting Type	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Ingress Protection	Termination	Backshell Material, Plating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Applications	Insert Material	Orientation	Number of Positions
Amphenol CONEC 17-400410	Glass Filled Nylon Polyamide (PA)	Black	Cap (Cover) Protective	Female Receptacle Connector 2Pos	Contains Strap with Ring Dust Tight Waterproof
Amphenol CONEC 17-400463		Black			Backshell Coupling Nut	100 °C	-40 °C	UL94 V-0	300 VAC	Plastic	Unshielded	Gold	Glass Filled Nylon Polyamide (PA)	20 A	Copper Alloy	Free Hanging (In-Line)	Male Pins Plug	Bayonet Lock	Flash	16 mm	0.354 in	0.63 in	9 mm	IP67 - Dust Tight Waterproof	Crimp	Glass Filled Nylon Polyamide (PA)	3	1	2	Automation Control Industrial Telecommunications	Polyamide (PA) Nylon Glass Filled	Keyed
Amphenol CONEC 17-400433		Black			Backshell	100 °C	-40 °C	UL94 V-0	48 VAC	Plastic	Unshielded	Gold	Glass Filled Nylon Polyamide (PA)	30 A	Copper Alloy	Free Hanging (In-Line)	Receptacle Female Sockets	Bayonet Lock	Flash	16 mm	0.354 in	0.63 in	9 mm	IP67 - Dust Tight Waterproof	Crimp	Glass Filled Nylon Polyamide (PA)				Automation Control Industrial Telecommunications	Polyamide (PA) Nylon Glass Filled	Keyed	2
Amphenol CONEC 17-400453		Black			Backshell	100 °C	-40 °C	UL94 V-0	250 VAC	Plastic	Unshielded	Gold	Glass Filled Nylon Polyamide (PA)	20 A	Copper Alloy	Free Hanging (In-Line)	Receptacle Female Sockets	Bayonet Lock	Flash	16 mm	0.354 in	0.63 in	9 mm	IP67 - Dust Tight Waterproof	Crimp	Glass Filled Nylon Polyamide (PA)	3	1	2	Automation Control Industrial Telecommunications	Polyamide (PA) Nylon Glass Filled	Keyed
Amphenol CONEC 17-400443		Black			Backshell Coupling Nut	100 °C	-40 °C	UL94 V-0	48 VAC	Plastic	Unshielded	Gold	Glass Filled Nylon Polyamide (PA)	30 A	Copper Alloy	Free Hanging (In-Line)	Male Pins Plug	Bayonet Lock	Flash	16 mm	0.354 in	0.63 in	9 mm	IP67 - Dust Tight Waterproof	Crimp	Glass Filled Nylon Polyamide (PA)				Automation Control Industrial Telecommunications	Polyamide (PA) Nylon Glass Filled	Keyed	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.63
		10	$ 9.70
		25	$ 8.77
		50	$ 8.13
		100	$ 7.56
		250	$ 6.88
		500	$ 6.43
		1000	$ 6.02

Description

General part information

17-4004 Series

Connector Cap (Cover), Protective Black
