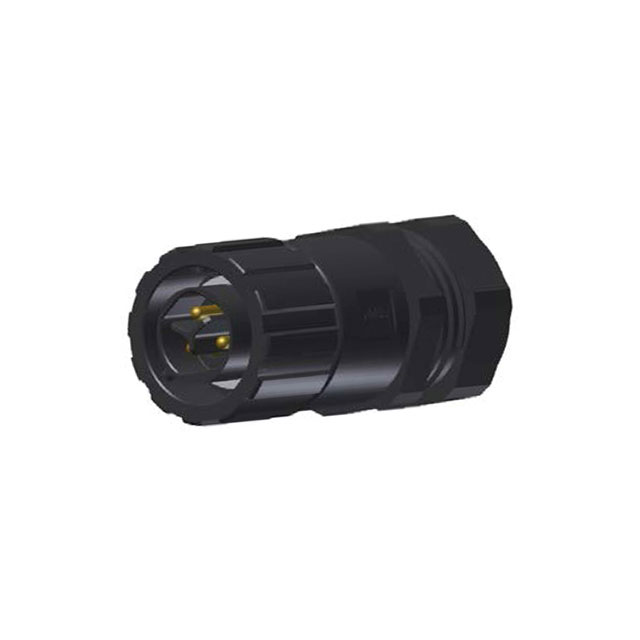

17-400463
ActiveAmphenol CONEC
CONN PLUG MALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17-400463
ActiveAmphenol CONEC
CONN PLUG MALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17-400463 |
|---|---|
| Applications | Telecommunications, Automation Control, Industrial |
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Cable Opening [Max] [diameter] | 16 mm |
| Cable Opening [Max] [diameter] | 0.63 in |
| Cable Opening [Min] [diameter] | 0.354 in |
| Cable Opening [Min] [diameter] | 9 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 1 |
| Number of Positions [custom] | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 300 VAC |
17-4004 Series
| Part | Material | Color | Accessory Type | For Use With/Related Products | Features | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Voltage Rating | Primary Material | Shielding | Contact Finish - Mating | Shell Material | Current Rating (Amps) | Contact Material | Mounting Type | Connector Type | Fastening Type | Contact Finish Thickness - Mating | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Ingress Protection | Termination | Backshell Material, Plating | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Applications | Insert Material | Orientation | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | Glass Filled Nylon Polyamide (PA) | Black | Cap (Cover) Protective | Female Receptacle Connector 2Pos | Contains Strap with Ring Dust Tight Waterproof | ||||||||||||||||||||||||||||
Amphenol CONEC | Black | Backshell Coupling Nut | 100 °C | -40 °C | UL94 V-0 | 300 VAC | Plastic | Unshielded | Gold | Glass Filled Nylon Polyamide (PA) | 20 A | Copper Alloy | Free Hanging (In-Line) | Male Pins Plug | Bayonet Lock | Flash | 16 mm | 0.354 in | 0.63 in | 9 mm | IP67 - Dust Tight Waterproof | Crimp | Glass Filled Nylon Polyamide (PA) | 3 | 1 | 2 | Automation Control Industrial Telecommunications | Polyamide (PA) Nylon Glass Filled | Keyed | ||||
Amphenol CONEC | Black | Backshell | 100 °C | -40 °C | UL94 V-0 | 48 VAC | Plastic | Unshielded | Gold | Glass Filled Nylon Polyamide (PA) | 30 A | Copper Alloy | Free Hanging (In-Line) | Receptacle Female Sockets | Bayonet Lock | Flash | 16 mm | 0.354 in | 0.63 in | 9 mm | IP67 - Dust Tight Waterproof | Crimp | Glass Filled Nylon Polyamide (PA) | Automation Control Industrial Telecommunications | Polyamide (PA) Nylon Glass Filled | Keyed | 2 | ||||||
Amphenol CONEC | Black | Backshell | 100 °C | -40 °C | UL94 V-0 | 250 VAC | Plastic | Unshielded | Gold | Glass Filled Nylon Polyamide (PA) | 20 A | Copper Alloy | Free Hanging (In-Line) | Receptacle Female Sockets | Bayonet Lock | Flash | 16 mm | 0.354 in | 0.63 in | 9 mm | IP67 - Dust Tight Waterproof | Crimp | Glass Filled Nylon Polyamide (PA) | 3 | 1 | 2 | Automation Control Industrial Telecommunications | Polyamide (PA) Nylon Glass Filled | Keyed | ||||
Amphenol CONEC | Black | Backshell Coupling Nut | 100 °C | -40 °C | UL94 V-0 | 48 VAC | Plastic | Unshielded | Gold | Glass Filled Nylon Polyamide (PA) | 30 A | Copper Alloy | Free Hanging (In-Line) | Male Pins Plug | Bayonet Lock | Flash | 16 mm | 0.354 in | 0.63 in | 9 mm | IP67 - Dust Tight Waterproof | Crimp | Glass Filled Nylon Polyamide (PA) | Automation Control Industrial Telecommunications | Polyamide (PA) Nylon Glass Filled | Keyed | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 22.99 | |
Description
General part information
17-4004 Series
3 (2 Power + PE) Position Circular Connector Plug, Male Pins Crimp
