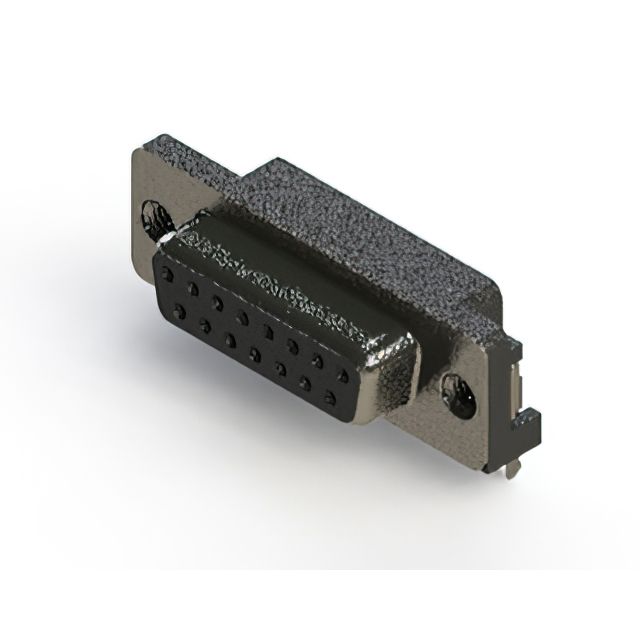

624-015-661-035
ActiveEDAC Inc.
624 SERIES RIGHT ANGLE D-SUB PLU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 624-015-661-035 |
|---|---|
| Backset Spacing | 0.197 in |
| Backset Spacing | 5 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Board Lock |
| Flange Feature | Housing/Shell (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
624-015 Series
| Part | Current Rating (Amps) | Backset Spacing | Backset Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Features | Color | Contact Finish Thickness | Contact Finish Thickness | Dielectric Material | Material Flammability Rating | Number of Positions | Termination | Mounting Type | Flange Feature | Contact Type | Connector Style | Shell Material, Finish | Contact Material | Shell Size, Connector Layout | Contact Finish | Number of Rows | Connector Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 125 °C | Board Lock Shielded | Black | 0.76 Ám | 30 Áin | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | |
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 125 °C | Board Lock Shielded | Black | 0.76 Ám | 30 Áin | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Housing/Shell (4-40) | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | |
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 125 °C | Board Lock Shielded | Black | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | Flash | ||
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 85 °C | Board Lock Shielded | Black | 0.38 µm | 15 µin | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Housing/Shell (M3) | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | |
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 125 °C | Board Lock Shielded | Black | 0.76 Ám | 30 Áin | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Housing/Shell (Unthreaded) | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | |
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 85 °C | Board Lock Shielded | Black | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Housing/Shell (M3) | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | Flash | ||
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 85 °C | Board Lock Shielded | Black | 0.38 µm | 15 µin | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | |
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 85 °C | Board Lock Shielded | Black | 0.76 Ám | 30 Áin | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Housing/Shell (M3) | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | |
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 125 °C | Board Lock Shielded | Black | 0.38 µm | 15 µin | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Housing/Shell (M3) | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | |
EDAC Inc. | 3 A | 0.197 in | 5 mm | -55 °C | 85 °C | Board Lock Shielded | Black | Polyester Thermoplastic | UL94 V-0 | 15 | Solder | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Signal | D-Sub | Nickel Plated Steel | Copper Alloy | 2 | Gold | 2 | Receptacle Female Sockets | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 5.03 | |
Description
General part information
624-015 Series
15 Position D-Sub Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
