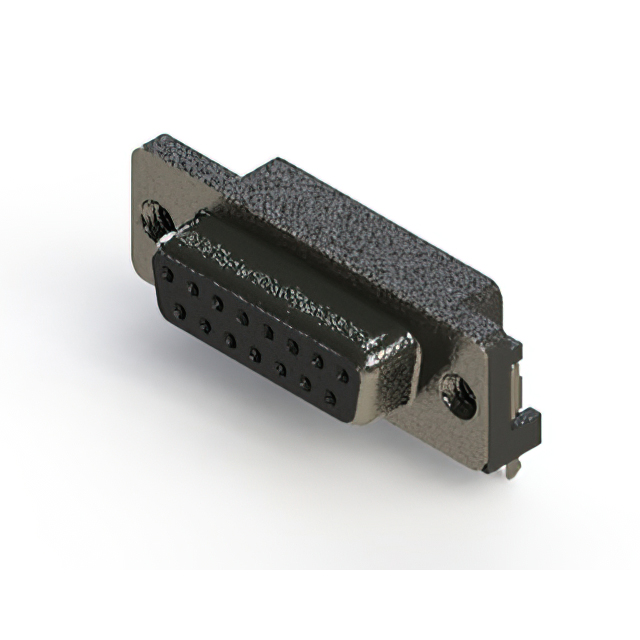

624-015-661-532

Active

EDAC Inc.

624 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

624-015-661-532

Active

EDAC Inc.

624 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	624-015-661-532

Backset Spacing	0.197 in
Backset Spacing	5 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

624-015 Series

Part	Current Rating (Amps)	Backset Spacing	Backset Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Material Flammability Rating	Number of Positions	Termination	Mounting Type	Flange Feature	Contact Type	Connector Style	Shell Material, Finish	Contact Material	Shell Size, Connector Layout	Contact Finish	Number of Rows	Connector Type	Contact Finish Thickness
EDAC Inc. 624-015-661-533	3 A	0.197 in	5 mm	-55 °C	125 °C	Board Lock Shielded	Black	0.76 Ám	30 Áin	Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets
EDAC Inc. 624-015-661-532	3 A	0.197 in	5 mm	-55 °C	125 °C	Board Lock Shielded	Black	0.76 Ám	30 Áin	Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets
EDAC Inc. 624-015-261-533	3 A	0.197 in	5 mm	-55 °C	125 °C	Board Lock Shielded	Black			Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets	Flash
EDAC Inc. 624-015-361-035	3 A	0.197 in	5 mm	-55 °C	85 °C	Board Lock Shielded	Black	0.38 µm	15 µin	Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Housing/Shell (M3)	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets
EDAC Inc. 624-015-661-531	3 A	0.197 in	5 mm	-55 °C	125 °C	Board Lock Shielded	Black	0.76 Ám	30 Áin	Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Housing/Shell (Unthreaded)	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets
EDAC Inc. 624-015-261-035	3 A	0.197 in	5 mm	-55 °C	85 °C	Board Lock Shielded	Black			Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Housing/Shell (M3)	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets	Flash
EDAC Inc. 624-015-361-033	3 A	0.197 in	5 mm	-55 °C	85 °C	Board Lock Shielded	Black	0.38 µm	15 µin	Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets
EDAC Inc. 624-015-661-035	3 A	0.197 in	5 mm	-55 °C	85 °C	Board Lock Shielded	Black	0.76 Ám	30 Áin	Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Housing/Shell (M3)	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets
EDAC Inc. 624-015-361-535	3 A	0.197 in	5 mm	-55 °C	125 °C	Board Lock Shielded	Black	0.38 µm	15 µin	Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Housing/Shell (M3)	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets
EDAC Inc. 624-015-261-033	3 A	0.197 in	5 mm	-55 °C	85 °C	Board Lock Shielded	Black			Polyester Thermoplastic	UL94 V-0	15	Solder	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Signal	D-Sub	Nickel Plated Steel	Copper Alloy	2	Gold	2	Receptacle Female Sockets	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 5.38

Description

General part information

624-015 Series

15 Position D-Sub Receptacle, Female Sockets Connector
