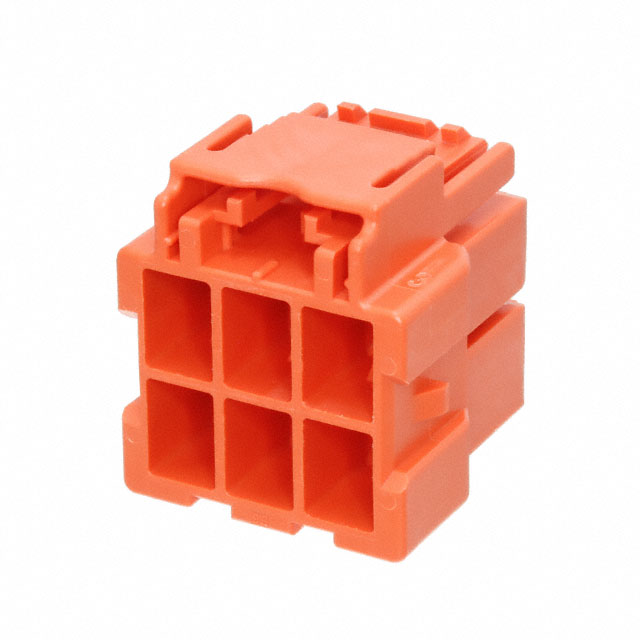

8-2232266-3

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 6POS 6.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8-2232266-3

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 6POS 6.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8-2232266-3

Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Blade Socket
Fastening Type	Latch Holder
Features	Glow Wire Compliant
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.236 in
Pitch [x]	6 mm
Row Spacing	8.1 mm
Row Spacing	0.319 in

Power Triple Lock Series

RF Connectors / Coaxial Connectors 2x5 cap housing free hanging Key D ora

Part	Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Insulation Material	Pitch [x]	Pitch [x]	Note	Color	Fastening Type	Features	Number of Rows	Connector Type	Row Spacing	Row Spacing
TE Connectivity Raychem Cable Protection 5-2232266-6	Female Blade Socket	12	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	Polyamide (PA6) Nylon 6	0.236 in	6 mm	Contacts Not Included	Gray	Latch Holder	Glow Wire Compliant	2	Plug	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 5-2232266-4	Female Blade Socket	8	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	Polyamide (PA6) Nylon 6	0.236 in	6 mm	Contacts Not Included	Gray	Latch Holder	Glow Wire Compliant	2	Plug	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 5-2232266-5	Female Blade Socket	10	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	Polyamide (PA6) Nylon 6	0.236 in	6 mm	Contacts Not Included	Gray	Latch Holder	Glow Wire Compliant	2	Plug	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 7-2232266-4	Female Blade Socket	8	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	0.236 in	6 mm	Contacts Not Included	Green	Latch Lock	Glow Wire Compliant	2	Plug	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 8-2232266-3	Female Blade Socket	6	140 °C	-55 °C	Crimp	Free Hanging (In-Line)	Polyamide (PA6) Nylon 6	0.236 in	6 mm	Contacts Not Included		Latch Holder	Glow Wire Compliant	2	Plug	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 8-2232266-5	Female Blade Socket	10	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	0.236 in	6 mm	Contacts Not Included		Latch Lock	Glow Wire Compliant	2	Plug	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 8-2232266-4	Female Blade Socket	8	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	0.236 in	6 mm	Contacts Not Included		Latch Lock	Glow Wire Compliant	2	Plug	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 7-2232266-3	Female Blade Socket	6	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	0.236 in	6 mm	Contacts Not Included	Green	Latch Lock	Glow Wire Compliant	2	Plug	8.1 mm	0.319 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.47
		10	$ 0.45
		25	$ 0.45
		50	$ 0.44
		100	$ 0.37
		250	$ 0.34
		500	$ 0.34

Description

General part information

Power Triple Lock Series

RF Connectors / Coaxial Connectors 2x5 cap housing free hanging Key D ora
