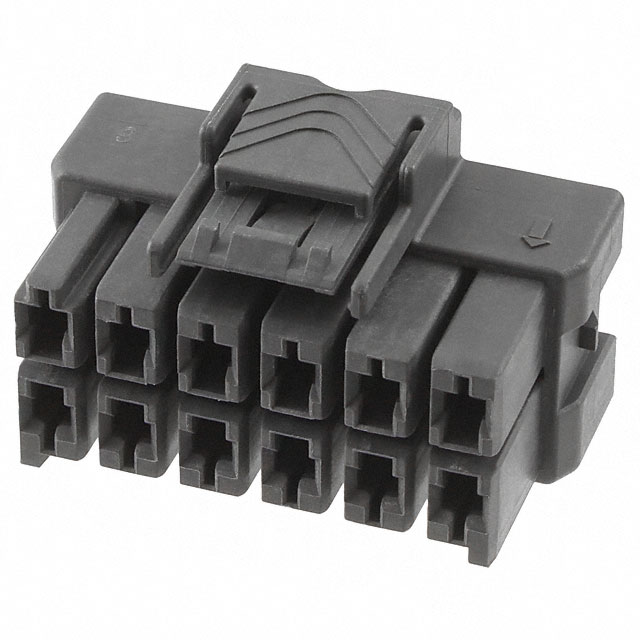

5-2232266-6
ActiveTE Connectivity Raychem Cable Protection
POWER TO THE BOARD 2X6 PLUG DGR HOUSING KEY A
Deep-Dive with AI
Search across all available documentation for this part.
5-2232266-6
ActiveTE Connectivity Raychem Cable Protection
POWER TO THE BOARD 2X6 PLUG DGR HOUSING KEY A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-2232266-6 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Blade Socket |
| Fastening Type | Latch Holder |
| Features | Glow Wire Compliant |
| Insulation Material | Polyamide (PA6), Nylon 6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.236 in |
| Pitch [x] | 6 mm |
| Row Spacing | 8.1 mm |
| Row Spacing | 0.319 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Power Triple Lock Series
RF Connectors / Coaxial Connectors 2x5 cap housing free hanging Key D ora
