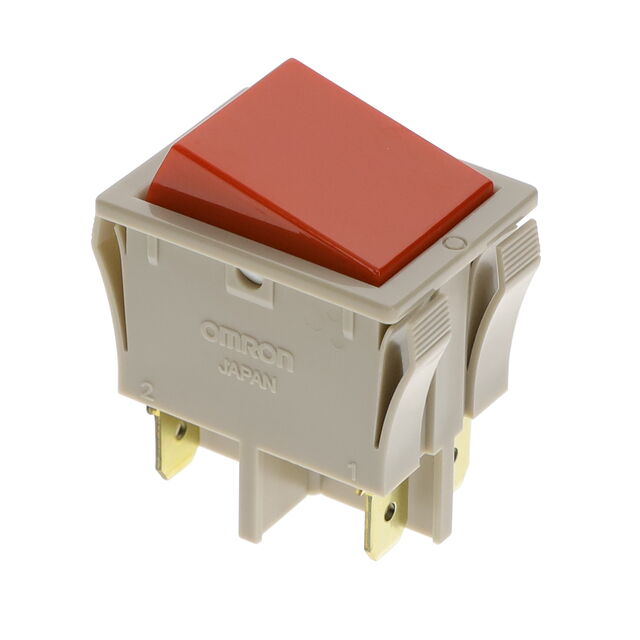

A8A-202-2

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH ROCKER DPST 16A 125V

Part	Color - Actuator/Cap	Switch Function	Termination Style	Current Rating (Amps)	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Ingress Protection	Mechanical Life	Mounting Type	Circuit	Actuator Marking
Omron Electronics Inc-EMC Div A8A-202-2	Red	On-Off	Quick Connect - 0.250" (6.3mm)	16 A	20000 Steps	50 °C	-25 °C	125 V	Flat	30 mm	22 mm	CSA, EN, UL	IP00	40000 Cycles	Panel Mount, Snap-In	DPST	No Marking
Omron Electronics Inc-EMC Div A8A-202-1	Red	On-Off	Quick Connect - 0.250" (6.3mm)	16 A	20000 Steps	50 °C	-25 °C	125 V	Flat	30 mm	22 mm	CSA, EN, UL	IP00	40000 Cycles	Panel Mount, Snap-In	DPST	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.33
