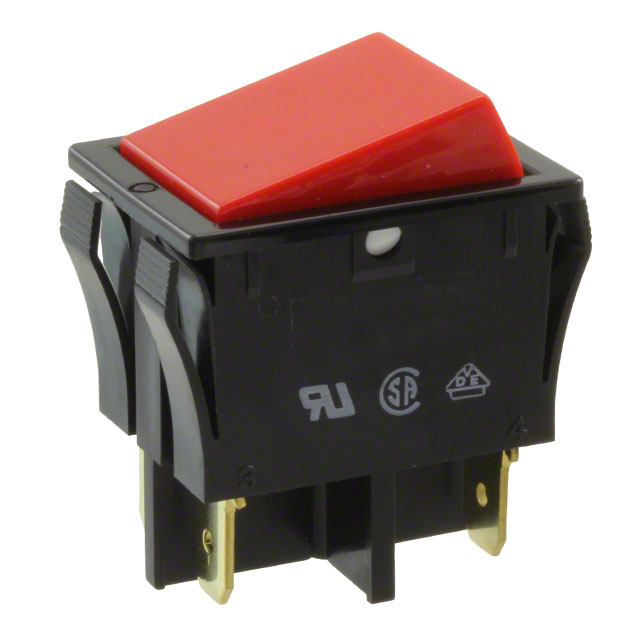

A8A-202-1

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

Part	Color - Actuator/Cap	Switch Function	Termination Style	Current Rating (Amps)	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Ingress Protection	Mechanical Life	Mounting Type	Circuit	Actuator Marking
Omron Electronics Inc-EMC Div A8A-202-2	Red	On-Off	Quick Connect - 0.250" (6.3mm)	16 A	20000 Steps	50 °C	-25 °C	125 V	Flat	30 mm	22 mm	CSA, EN, UL	IP00	40000 Cycles	Panel Mount, Snap-In	DPST	No Marking
Omron Electronics Inc-EMC Div A8A-202-1	Red	On-Off	Quick Connect - 0.250" (6.3mm)	16 A	20000 Steps	50 °C	-25 °C	125 V	Flat	30 mm	22 mm	CSA, EN, UL	IP00	40000 Cycles	Panel Mount, Snap-In	DPST	No Marking
