SEAF8-20-1-S-10-2-RA

Active

Samtec Inc.

CONN HD ARRAY RCPT 200P R/A SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY RCPT 200P R/A SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Features	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Connector Type	Number of Rows
Samtec Inc. SEAF8-20-05.0-L-04-2-K	80	Board Guide Pick and Place	4.57 mm	0.18 in	Surface Mount	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	7 mm 10 mm	High Density Array Female
Samtec Inc. SEAF8-20-1-S-08-2-RA-GP	160	Board Guide Mating Flange			Surface Mount Right Angle	0.8 mm	0.031 in	30 Áin	0.76 Ám	Gold		High Density Array Female	8
Samtec Inc. SEAF8-20-1-S-08-2-RA	160				Surface Mount Right Angle	0.8 mm	0.031 in	30 Áin	0.76 Ám	Gold		High Density Array Female	8
Samtec Inc. SEAF8-20-1-S-10-2-RA					Surface Mount Right Angle	0.8 mm	0.031 in	30 Áin	0.76 Ám	Gold		High Density Array Female	10
Samtec Inc. SEAF8-20-05.0-S-10-2-K		Board Guide Pick and Place	4.57 mm	0.18 in	Surface Mount	0.8 mm	0.031 in	30 Áin	0.76 Ám	Gold	7 mm 10 mm	High Density Array Female	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	75	$ 28.83

General part information

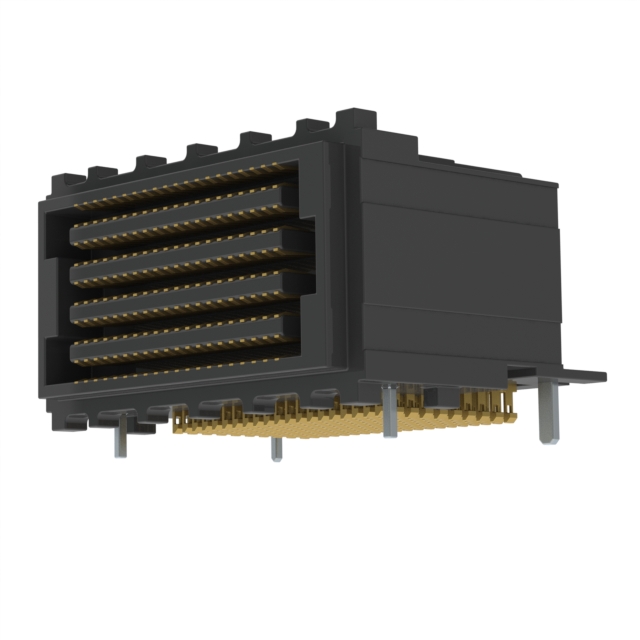

200 Position Connector High Density Array, Female Surface Mount, Right Angle Gold
