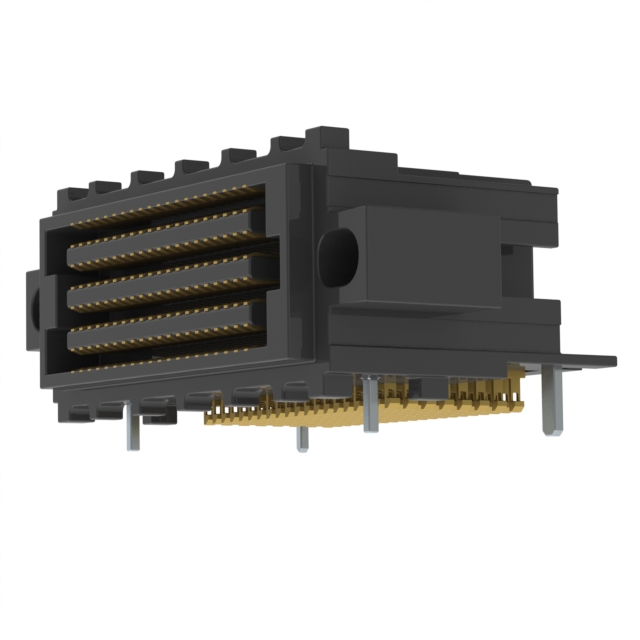

SEAF8-20-1-S-08-2-RA-GP

Active

Samtec Inc.

CONN HD ARRAY RCPT 160P R/A SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY RCPT 160P R/A SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Features	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Connector Type	Number of Rows
Samtec Inc. SEAF8-20-05.0-L-04-2-K	80	Board Guide Pick and Place	4.57 mm	0.18 in	Surface Mount	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	7 mm 10 mm	High Density Array Female
Samtec Inc. SEAF8-20-1-S-08-2-RA-GP	160	Board Guide Mating Flange			Surface Mount Right Angle	0.8 mm	0.031 in	30 Áin	0.76 Ám	Gold		High Density Array Female	8
Samtec Inc. SEAF8-20-1-S-08-2-RA	160				Surface Mount Right Angle	0.8 mm	0.031 in	30 Áin	0.76 Ám	Gold		High Density Array Female	8
Samtec Inc. SEAF8-20-1-S-10-2-RA					Surface Mount Right Angle	0.8 mm	0.031 in	30 Áin	0.76 Ám	Gold		High Density Array Female	10
Samtec Inc. SEAF8-20-05.0-S-10-2-K		Board Guide Pick and Place	4.57 mm	0.18 in	Surface Mount	0.8 mm	0.031 in	30 Áin	0.76 Ám	Gold	7 mm 10 mm	High Density Array Female	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

160 Position Connector High Density Array, Female Surface Mount, Right Angle Gold
