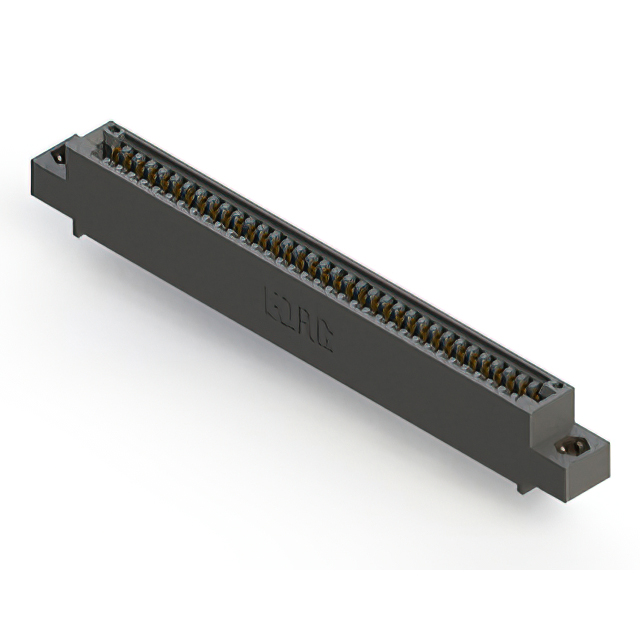

895-035-524-408

Active

EDAC Inc.

CONN EDGE SINGLE FML 35POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-035-524-408

Active

EDAC Inc.

CONN EDGE SINGLE FML 35POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-035-524-408

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	35
Number of Positions/Bay/Row [custom]	35
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

895-035 Series

...

Part	Termination	Contact Material	Read Out	Mounting Type	Flange Feature	Color	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Contact Finish	Card Type	Number of Positions	Gender	Number of Rows	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 895-035-524-408	Solder	Copper Alloy	Single	Through Hole	4-40 Threaded Insert Top Mount Opening	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-035-524-102	Solder	Copper Alloy	Single	Through Hole	Flush Mount Top Opening Unthreaded	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "
EDAC Inc. 895-035-525-402	Solder	Copper Alloy	Single	Through Hole		Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)			3.25 mm	0.128 in
EDAC Inc. 895-035-544-102	Wire Wrap	Copper Alloy	Single	Through Hole	Flush Mount Top Opening Unthreaded	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "
EDAC Inc. 895-035-540-602	Wire Wrap	Copper Alloy	Single	Through Hole		Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)			3.25 mm	0.128 in
EDAC Inc. 895-035-525-108	Solder	Copper Alloy	Single	Through Hole	4-40 Threaded Insert Top Mount Opening	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-035-540-107	Wire Wrap	Copper Alloy	Single	Through Hole	Flush Mount M3 Threaded Insert Top Opening	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-035-542-404	Wire Wrap	Copper Alloy	Single	Through Hole	Top Mount Opening Unthreaded	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	3.96 mm	0.156 in
EDAC Inc. 895-035-525-107	Solder	Copper Alloy	Single	Through Hole	Flush Mount M3 Threaded Insert Top Opening	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-035-544-103	Wire Wrap	Copper Alloy	Single	Through Hole	Floating Bobbin Flush Mount	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 71.25
Newark	Each	1	$ 85.50
		100	$ 71.45
		250	$ 65.18
		500	$ 60.14
		1000	$ 50.13

Description

General part information

895-035 Series

35 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
