895-035-524-102

Active

EDAC Inc.

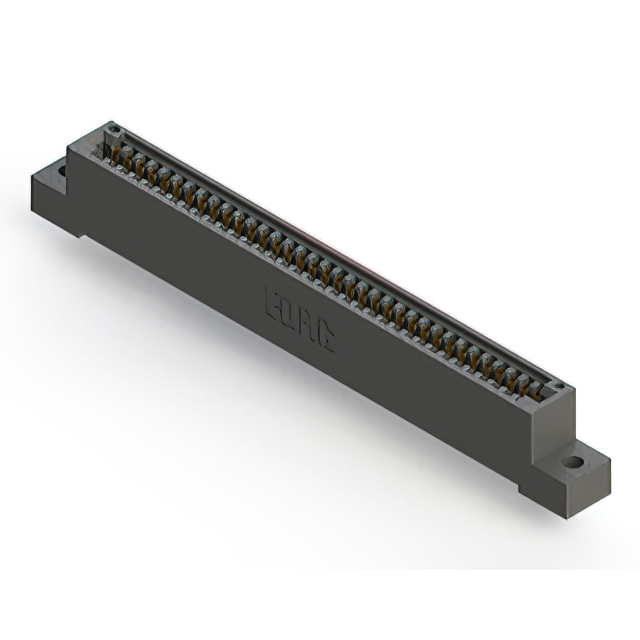

CARD EDGE CONNECTOR, 35 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-035-524-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, 35 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-035-524-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	35
Number of Positions/Bay/Row [custom]	35
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

895-035 Series

...

Part	Termination	Contact Material	Read Out	Mounting Type	Flange Feature	Color	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Contact Finish	Card Type	Number of Positions	Gender	Number of Rows	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 895-035-524-408	Solder	Copper Alloy	Single	Through Hole	4-40 Threaded Insert Top Mount Opening	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-035-524-102	Solder	Copper Alloy	Single	Through Hole	Flush Mount Top Opening Unthreaded	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "
EDAC Inc. 895-035-525-402	Solder	Copper Alloy	Single	Through Hole		Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)			3.25 mm	0.128 in
EDAC Inc. 895-035-544-102	Wire Wrap	Copper Alloy	Single	Through Hole	Flush Mount Top Opening Unthreaded	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "
EDAC Inc. 895-035-540-602	Wire Wrap	Copper Alloy	Single	Through Hole		Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)			3.25 mm	0.128 in
EDAC Inc. 895-035-525-108	Solder	Copper Alloy	Single	Through Hole	4-40 Threaded Insert Top Mount Opening	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-035-540-107	Wire Wrap	Copper Alloy	Single	Through Hole	Flush Mount M3 Threaded Insert Top Opening	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-035-542-404	Wire Wrap	Copper Alloy	Single	Through Hole	Top Mount Opening Unthreaded	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	3.96 mm	0.156 in
EDAC Inc. 895-035-525-107	Solder	Copper Alloy	Single	Through Hole	Flush Mount M3 Threaded Insert Top Opening	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-035-544-103	Wire Wrap	Copper Alloy	Single	Through Hole	Floating Bobbin Flush Mount	Black	2.54 mm	0.1 in	35	Gold	Non Specified - Single Edge	35	Female	1	1	10 Áin	0.25 Ám	Cantilever	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 56.13

Description

General part information

895-035 Series

35 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
