SL-118-TT-10

Unknown

Samtec Inc.

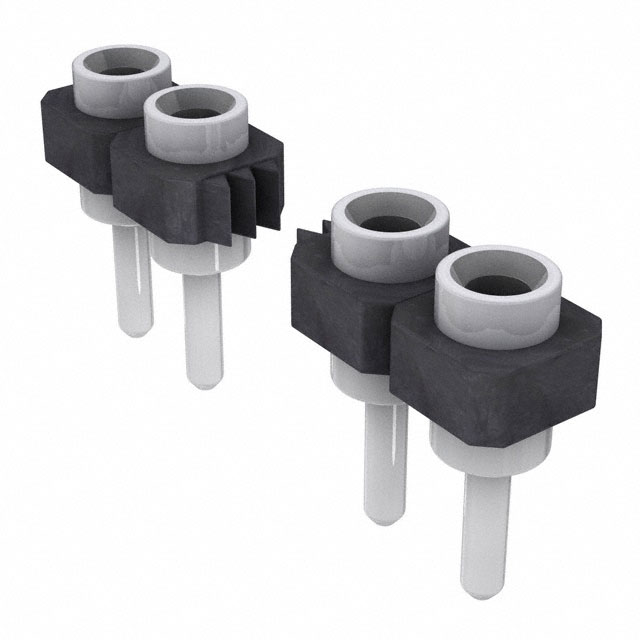

CONN RCPT 18POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SL-118-TT-10

Unknown

Samtec Inc.

CONN RCPT 18POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SL-118-TT-10

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.108 in
Contact Length - Post	2.75 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.1 mm
Insulation Height	0.122 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

SL-118 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Material	Insulation Height	Insulation Height	Contact Shape	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Mounting Type	Connector Type	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Material	Number of Rows	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SL-118-T-19	30 Áin	0.76 Ám	Push-Pull	Beryllium Copper	0.05 in	1.27 mm	Circular	Female Socket	0.1 in	2.54 mm	All	Solder	Through Hole	Receptacle	18	2.08 mm	0.082 "	Black	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)	1
Samtec Inc. SL-118-TT-11			Push-Pull	Beryllium Copper	0.132 in	3.35 mm	Circular	Female Socket	0.1 in	2.54 mm	All	Solder	Through Hole	Receptacle	18			Black	-55 °C	105 ░C		Liquid Crystal Polymer (LCP)	1	Tin	0.108 in	2.75 mm
Samtec Inc. SL-118-G-11	30 Áin	0.76 Ám	Push-Pull	Beryllium Copper	0.132 in	3.35 mm	Circular	Female Socket	0.1 in	2.54 mm	All	Solder	Through Hole	Receptacle	18			Black	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)	1	Gold	0.108 in	2.75 mm	10 çin	0.25 çm
Samtec Inc. SL-118-T-12	30 Áin	0.76 Ám	Push-Pull	Beryllium Copper			Circular	Female Socket	0.1 in	2.54 mm	All	Solder	Through Hole	Receptacle	18	2.41 mm	0.095 in	Black	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)	1						0.095 in	2.41 mm
Samtec Inc. SL-118-TT-10			Push-Pull	Beryllium Copper	0.122 in	3.1 mm	Circular	Female Socket	0.1 in	2.54 mm	All	Solder	Through Hole	Receptacle	18			Black	-55 °C	105 ░C		Liquid Crystal Polymer (LCP)	1	Tin	0.108 in	2.75 mm
Samtec Inc. SL-118-G-39	30 Áin	0.76 Ám	Push-Pull	Beryllium Copper	0.05 in	1.27 mm	Circular	Female Socket	0.1 in	2.54 mm	All	Solder	Through Hole	Receptacle	18			Black	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)	1	Gold			10 çin	0.25 çm
Samtec Inc. SL-118-T-32	30 Áin	0.76 Ám	Push-Pull	Beryllium Copper	0.05 in	1.27 mm	Circular	Female Socket	0.1 in	2.54 mm	All	Solder	Through Hole	Receptacle	18			Black	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)	1
Samtec Inc. SL-118-G-12	30 Áin	0.76 Ám	Push-Pull	Beryllium Copper			Circular	Female Socket	0.1 in	2.54 mm	All	Solder	Through Hole	Receptacle	18	2.41 mm	0.095 in	Black	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)	1	Gold			10 çin	0.25 çm	0.095 in	2.41 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SL-118 Series

18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
