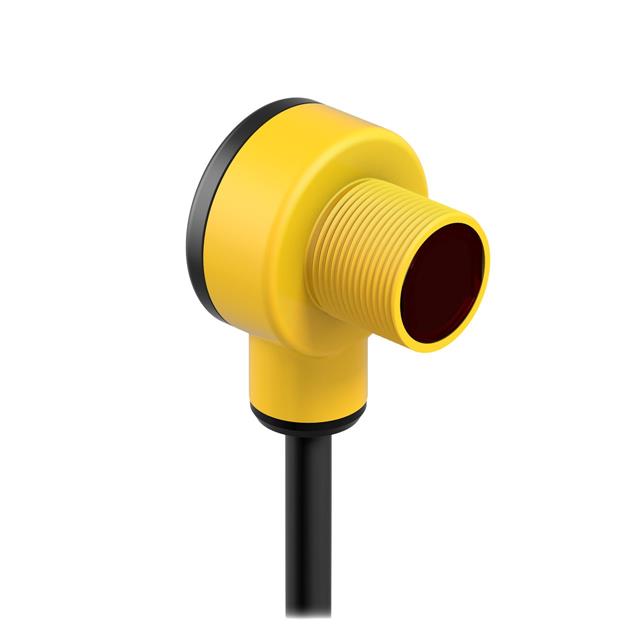

T18SN6LPM5V

Active

BANNER ENGINEERING

EZ-BEAM T18 SERIES: THREADED R-ANGLE POLAR RETRO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T18SN6LPM5V

Active

BANNER ENGINEERING

EZ-BEAM T18 SERIES: THREADED R-ANGLE POLAR RETRO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T18SN6LPM5V

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP67, NEMA 6P, IP69K, IEC
Light Source	Red
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Response Time	3 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	Polarized, Retroreflective

T18SN6 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Light Source	Connection Method	Sensing Distance	Sensing Distance	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Response Time	Cable Length	Cable Length
BANNER ENGINEERING T18SN6FF100Q	30 VDC	10 VDC	Background Suppression	Infrared	Connector	3.937 in	100 mm	IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms
BANNER ENGINEERING T18SN6LQP	30 VDC	10 VDC	NonPolarized Retroreflective	Infrared (950nm)	Connector	78.74 "	2 m	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C		3 ms
BANNER ENGINEERING T18SN6L	30 VDC	10 VDC	NonPolarized Retroreflective	Infrared (950nm)	Cable	78.74 "	2 m	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C		3 ms	78.74 in	2 m
BANNER ENGINEERING T18SN6RQ	30 VDC	10 VDC	Through-Beam	Infrared (950nm)	Connector	787.402 in	20 m	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms
BANNER ENGINEERING T18SN6LPM5V			Polarized Retroreflective	Red	Cable	78.74 "	2 m	IEC IP67 IP69K NEMA 6P	-40 °C	70 °C		3 ms	78.74 in	2 m
BANNER ENGINEERING T18SN6DQP	30 VDC	10 VDC	Diffuse	Infrared	Connector	19.685 in	50 cm	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms
BANNER ENGINEERING T18SN6DQ	30 VDC	10 VDC	Diffuse	Infrared	Connector	19.685 in	50 cm	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms
BANNER ENGINEERING T18SN6D	30 VDC	10 VDC	Diffuse	Infrared	Cable	19.685 in	50 cm	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms	78.74 in	2 m
BANNER ENGINEERING T18SN6R W/30	30 VDC	10 VDC	Through-Beam	Infrared (950nm)	Cable	787.402 in	20 m	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C		3 ms	354.33 in	9 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 132.00
Newark	Each	1	$ 136.00

Description

General part information

T18SN6 Series

Retroreflective, Polarized Optical Sensor 78.740" (2m) NPN - Dark-ON/Light-ON - Selectable
