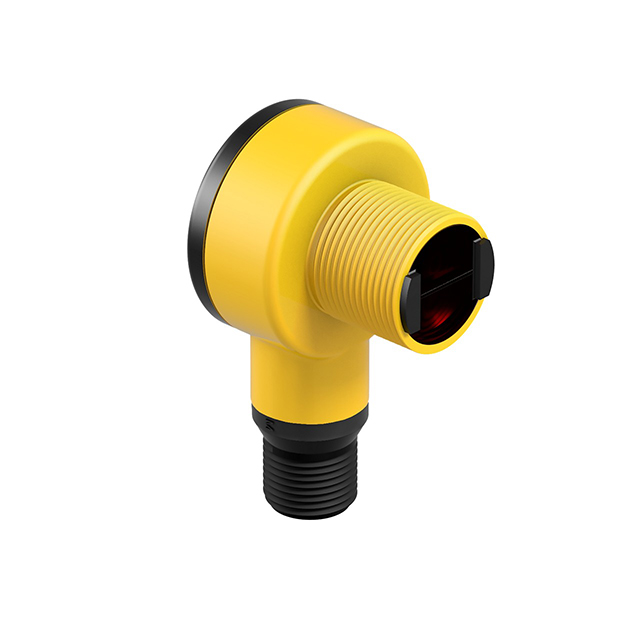

T18SN6FF100Q

Obsolete

BANNER ENGINEERING

PHOTO SEN 100MM COMP NPN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T18SN6LPM5V

T18SN6FF100Q

Obsolete

BANNER ENGINEERING

PHOTO SEN 100MM COMP NPN

Deep-Dive with AI

DocumentsDatasheet T18SN6LPM5V

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T18SN6FF100Q

Connection Method	Connector
Ingress Protection	NEMA 6P, IP69K
Light Source	Infrared
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN - Dark-ON/Light-ON
Response Time	3 ms
Sensing Distance	3.937 in
Sensing Distance	100 mm
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

T18SN6 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Light Source	Connection Method	Sensing Distance	Sensing Distance	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Response Time	Cable Length	Cable Length
BANNER ENGINEERING T18SN6FF100Q	30 VDC	10 VDC	Background Suppression	Infrared	Connector	3.937 in	100 mm	IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms
BANNER ENGINEERING T18SN6LQP	30 VDC	10 VDC	NonPolarized Retroreflective	Infrared (950nm)	Connector	78.74 "	2 m	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C		3 ms
BANNER ENGINEERING T18SN6L	30 VDC	10 VDC	NonPolarized Retroreflective	Infrared (950nm)	Cable	78.74 "	2 m	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C		3 ms	78.74 in	2 m
BANNER ENGINEERING T18SN6RQ	30 VDC	10 VDC	Through-Beam	Infrared (950nm)	Connector	787.402 in	20 m	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms
BANNER ENGINEERING T18SN6LPM5V			Polarized Retroreflective	Red	Cable	78.74 "	2 m	IEC IP67 IP69K NEMA 6P	-40 °C	70 °C		3 ms	78.74 in	2 m
BANNER ENGINEERING T18SN6DQP	30 VDC	10 VDC	Diffuse	Infrared	Connector	19.685 in	50 cm	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms
BANNER ENGINEERING T18SN6DQ	30 VDC	10 VDC	Diffuse	Infrared	Connector	19.685 in	50 cm	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms
BANNER ENGINEERING T18SN6D	30 VDC	10 VDC	Diffuse	Infrared	Cable	19.685 in	50 cm	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C	NPN - Dark-ON/Light-ON	3 ms	78.74 in	2 m
BANNER ENGINEERING T18SN6R W/30	30 VDC	10 VDC	Through-Beam	Infrared (950nm)	Cable	787.402 in	20 m	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C		3 ms	354.33 in	9 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

T18SN6 Series

Background Suppression Optical Sensor 3.937" (100mm) NPN - Dark-ON/Light-ON
