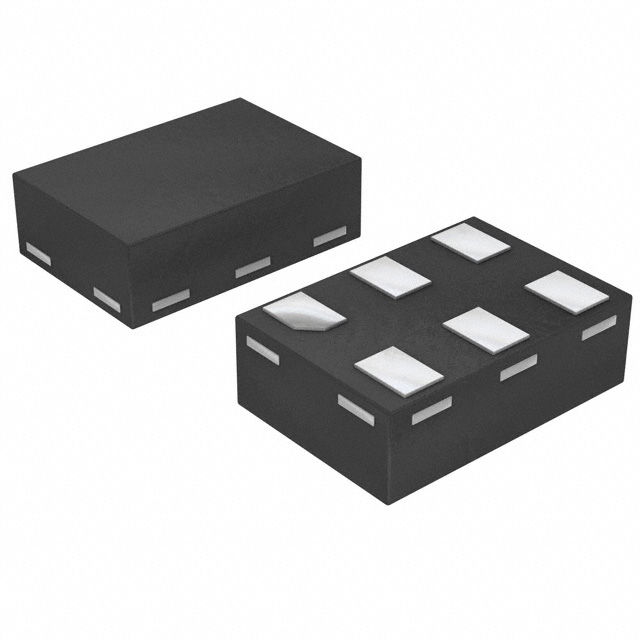

TLV3691IDPFR
ActiveTexas Instruments
NANOPOWER, SMALL-SIZE, SINGLE COMPARATOR 6-X2SON -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
TLV3691IDPFR
ActiveTexas Instruments
NANOPOWER, SMALL-SIZE, SINGLE COMPARATOR 6-X2SON -40 TO 125
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TLV3691IDPFR | TLV3691 Series |
|---|---|---|
| Current - Input Bias (Max) [Max] | 100 pA | 100 pA |
| Current - Output (Typ) | 42 mA | 42 mA |
| Current - Quiescent (Max) [Max] | 150 nA | 150 nA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Elements [custom] | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Push-Pull | Push-Pull |
| Package / Case | 6-XFDFN | 6-XFDFN, 5-TSSOP, SOT-353, SC-70-5 |
| Propagation Delay (Max) [Max] | 35 µs | 35 µs |
| Supplier Device Package | 6-X2SON (1x1) | 6-X2SON (1x1), SC-70-5 |
| Type | General Purpose | General Purpose |
| Voltage - Input Offset (Max) | 3 mV | 3 mV |
| Voltage - Supply, Single/Dual (±) [Max] | 6.5 V, 3.25 V | 3.25 - 6.5 V |
| Voltage - Supply, Single/Dual (±) [Min] | -1 V, 0.9 V | -1 - 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TLV3691 Series
Nanopower, small-size, single comparator
| Part | Current - Input Bias (Max) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Voltage - Supply, Single/Dual (±) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Current - Output (Typ) | Mounting Type | Type | Voltage - Input Offset (Max) | Output Type | Package / Case | Number of Elements [custom] | Propagation Delay (Max) [Max] | Current - Quiescent (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TLV3691IDPFTThe TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C.
The TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C. | 100 pA | -1 V, 0.9 V | 3.25 V, 6.5 V | 125 °C | -40 °C | 6-X2SON (1x1) | 42 mA | Surface Mount | General Purpose | 3 mV | Push-Pull | 6-XFDFN | 1 | 35 µs | 150 nA |
Texas Instruments TLV3691IDPFRThe TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C.
The TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C. | 100 pA | -1 V, 0.9 V | 3.25 V, 6.5 V | 125 °C | -40 °C | 6-X2SON (1x1) | 42 mA | Surface Mount | General Purpose | 3 mV | Push-Pull | 6-XFDFN | 1 | 35 µs | 150 nA |
Texas Instruments TLV3691IDCKTThe TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C.
The TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C. | 100 pA | -1 V, 0.9 V | 3.25 V, 6.5 V | 125 °C | -40 °C | SC-70-5 | 42 mA | Surface Mount | General Purpose | 3 mV | Push-Pull | 5-TSSOP, SC-70-5, SOT-353 | 1 | 35 µs | 150 nA |
Texas Instruments TLV3691IDCKRThe TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C.
The TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C. | 100 pA | -1 V, 0.9 V | 3.25 V, 6.5 V | 125 °C | -40 °C | SC-70-5 | 42 mA | Surface Mount | General Purpose | 3 mV | Push-Pull | 5-TSSOP, SC-70-5, SOT-353 | 1 | 35 µs | 150 nA |
Description
General part information
TLV3691 Series
The TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
Available as a single channel, the low-power, wide supply, and temperature range makes this device flexible enough to handle almost any application from consumer to industrial. The TLV3691 is available in SC70-5 and 1-mm × 1-mm DFN-6 packages. This device is specified for operation across the expanded industrial temperature range of –40°C to 125°C.
The TLV3691 offers a wide supply range, low quiescent current 150 nA (maximum), and rail-to-rail inputs. All of these features come in industry-standard and extremely small packages, making this device an excellent choice for low-voltage and low-power applications for portable electronics and industrial systems.
