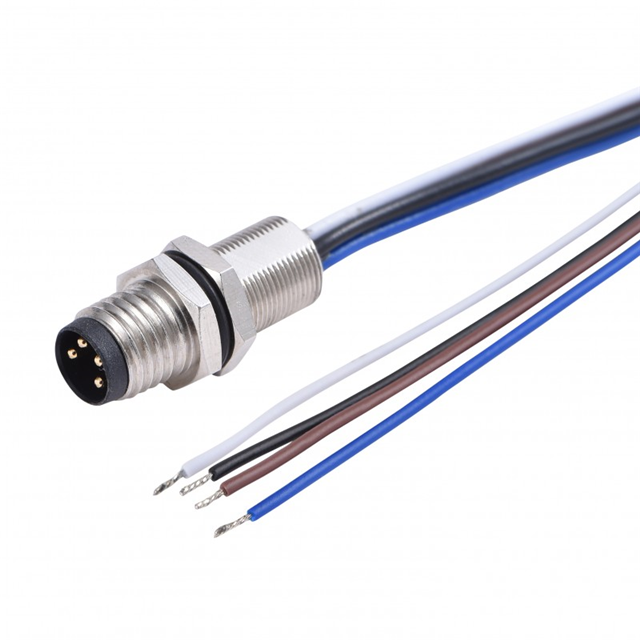

A-M08A04MST01016BK00

Active

Assmann WSW Components

CBL ASSEMBLY 4 POS M TO WIRE 100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-M08A04MST01016BK00

Active

Assmann WSW Components

CBL ASSEMBLY 4 POS M TO WIRE 100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-M08A04MST01016BK00

Color	Black
Connector Type	Plug, Male Pins
Current Rating (Amps)	3 A
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Epoxy, Plastic
Mounting Feature	Front and Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Primary Material	Metal
Shell Material	Brass
Shielding	Unshielded
Termination	Wire Leads
Voltage Rating	60 VAC

A-M08 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Primary Material	Voltage Rating	Current Rating (Amps)	Shell Material	Termination	Shielding	Insert Material	Ingress Protection	Connector Type	Color	Mounting Feature	Orientation	Shell Size - Insert	Features	Backshell Material, Plating	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shell Finish	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
Assmann WSW Components A-M08A04MST01016BK00	-25 °C	85 °C	4	Metal	60 VAC	3 A	Brass	Wire Leads	Unshielded	Epoxy Plastic	IP67/IP68 - Dust Tight Waterproof	Male Pins Plug	Black	Front and Rear Side Nut
Assmann WSW Components A-M08-03-FGPA-GEB1	-25 °C	85 °C		Metal	60 VAC	3 A	Brass	Screw	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	IP65 IP67	Female Sockets Plug	Black Silver		A	M8-3	Backshell Coupling Nut	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.118 in	5.5 mm	0.217 in	3 mm	Nickel	Phosphor Bronze	UL94 V-0	1 µin	0.025 µm	Gold
Assmann WSW Components A-M08-04-FGPA-GEB1	-25 °C	85 °C	4	Metal	60 VAC	3 A	Brass	Screw	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	IP65 IP67	Female Sockets Plug	Black Silver		A	M8-4	Backshell Coupling Nut	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.118 in	5.5 mm	0.217 in	3 mm	Nickel	Phosphor Bronze	UL94 V-0	1 µin	0.025 µm	Gold
Assmann WSW Components A-M08-04-MGPA-GEB1	-25 °C	85 °C	4	Metal	30 VAC	3 A	Brass	Screw	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	IP65 IP67	Male Pins Receptacle	Black Silver		A	M8-4	Backshell	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.118 in	5.5 mm	0.217 in	3 mm	Nickel	Phosphor Bronze	UL94 V-0	1 µin	0.025 µm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 6.93

Description

General part information

A-M08 Series

4 Position Circular Connector Plug, Male Pins Wire Leads

Documents

Technical documentation and resources
