A-M08-04-MGPA-GEB1

Active

Assmann WSW Components

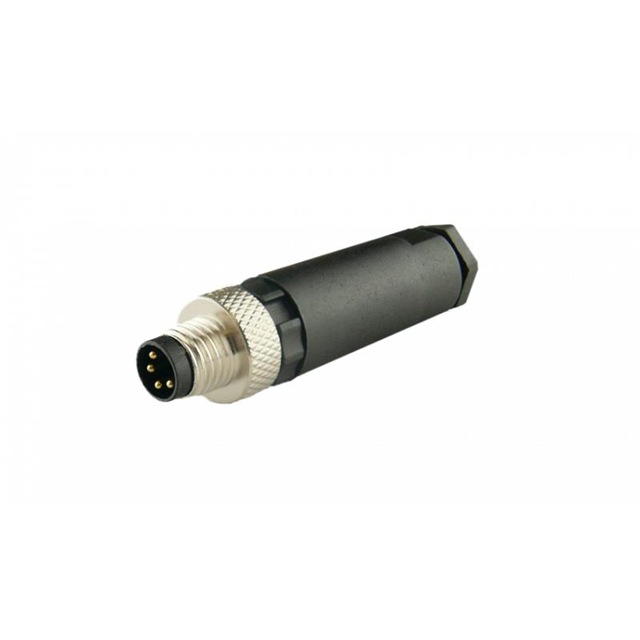

CONN PLUG MALE 4POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-M08-04-MGPA-GEB1

Active

Assmann WSW Components

CONN PLUG MALE 4POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-M08-04-MGPA-GEB1

Backshell Material, Plating	Nylon 6/6, Polyamide (PA66), Glass Filled
Cable Opening [Max] [diameter]	5.5 mm
Cable Opening [Max] [diameter]	0.217 in
Cable Opening [Min] [diameter]	0.118 in
Cable Opening [Min] [diameter]	3 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	3 A
Features	Backshell
Ingress Protection	IP67, IP65
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	30 VAC

A-M08 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Primary Material	Voltage Rating	Current Rating (Amps)	Shell Material	Termination	Shielding	Insert Material	Ingress Protection	Connector Type	Color	Mounting Feature	Orientation	Shell Size - Insert	Features	Backshell Material, Plating	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shell Finish	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
Assmann WSW Components A-M08A04MST01016BK00	-25 °C	85 °C	4	Metal	60 VAC	3 A	Brass	Wire Leads	Unshielded	Epoxy Plastic	IP67/IP68 - Dust Tight Waterproof	Male Pins Plug	Black	Front and Rear Side Nut
Assmann WSW Components A-M08-03-FGPA-GEB1	-25 °C	85 °C		Metal	60 VAC	3 A	Brass	Screw	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	IP65 IP67	Female Sockets Plug	Black Silver		A	M8-3	Backshell Coupling Nut	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.118 in	5.5 mm	0.217 in	3 mm	Nickel	Phosphor Bronze	UL94 V-0	1 µin	0.025 µm	Gold
Assmann WSW Components A-M08-04-FGPA-GEB1	-25 °C	85 °C	4	Metal	60 VAC	3 A	Brass	Screw	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	IP65 IP67	Female Sockets Plug	Black Silver		A	M8-4	Backshell Coupling Nut	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.118 in	5.5 mm	0.217 in	3 mm	Nickel	Phosphor Bronze	UL94 V-0	1 µin	0.025 µm	Gold
Assmann WSW Components A-M08-04-MGPA-GEB1	-25 °C	85 °C	4	Metal	30 VAC	3 A	Brass	Screw	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	IP65 IP67	Male Pins Receptacle	Black Silver		A	M8-4	Backshell	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.118 in	5.5 mm	0.217 in	3 mm	Nickel	Phosphor Bronze	UL94 V-0	1 µin	0.025 µm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.00
		10	$ 8.10
		25	$ 7.63
		50	$ 7.44
		100	$ 7.24
		250	$ 6.46
		500	$ 6.07
		1000	$ 5.36

Description

General part information

A-M08 Series

4 Position Circular Connector Receptacle, Male Pins Screw

Documents

Technical documentation and resources
