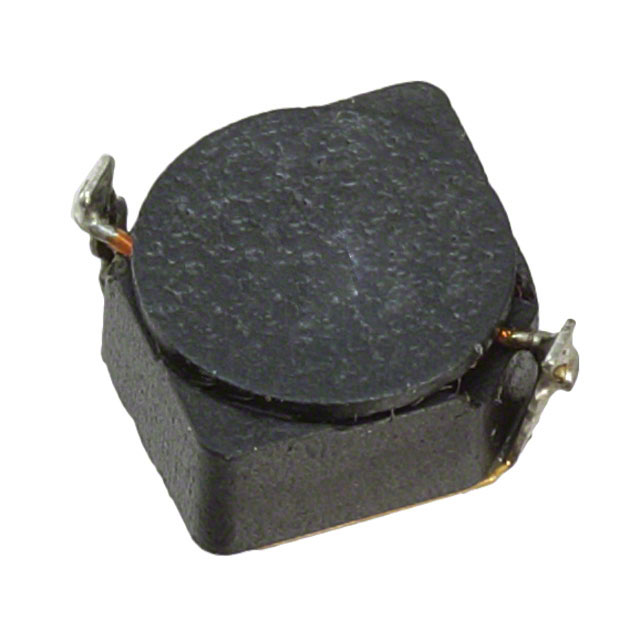

HM66-50100LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 10UH 1.3A 65 MOHM SMD

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

FIXED IND 10UH 1.3A 65 MOHM SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µH Shielded Wirewound Inductor 1.3 A 65mOhm Max Nonstandard

Technical documentation and resources

Parameters and characteristics commom to parts in this series

FIXED IND 150UH 1.15A 506MOHM SM

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Inductance Frequency - Test	Current Rating (Amps)	Tolerance	Type	Shielding	Height - Seated (Max)	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [x]
TT Electronics/BI Magnetics HM66-80151LFTR13	Surface Mount	125 °C	-40 °C	150 µH	Nonstandard	0.157 in	4 mm	10.2 mm	0.394 in	10 mm	0.402 in	506 mOhm	100 kHz	1.15 A	20 %	Wirewound	Shielded
TT Electronics/BI Magnetics HM66-60120LFTR13	Surface Mount	125 °C	-40 °C	12 µH	Nonstandard	0.118 in							10 kHz	1.55 A	20 %	Wirewound	Shielded	3 mm	70 mOhm
TT Electronics/BI Magnetics HM66-50100LFTR13	Surface Mount	125 °C	-40 °C	10 µH	Nonstandard	0.118 in		0.224 in		0.224 in			10 kHz	1.3 A	20 %	Wirewound	Shielded	3 mm	65 mOhm	5.7 mm	5.7 mm
TT Electronics/BI Magnetics HM66-50680LFTR13	Surface Mount	125 °C	-40 °C	68 µH	Nonstandard	0.118 in		0.224 in		0.224 in		355 mOhm	10 kHz	0.52 A	20 %	Wirewound	Shielded	3 mm		5.7 mm	5.7 mm
