HM66-60120LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 12UH 1.55A 70 MOHM SMD

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

FIXED IND 12UH 1.55A 70 MOHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 150UH 1.15A 506MOHM SM

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Inductance Frequency - Test	Current Rating (Amps)	Tolerance	Type	Shielding	Height - Seated (Max)	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [x]
TT Electronics/BI Magnetics HM66-80151LFTR13	Surface Mount	125 °C	-40 °C	150 µH	Nonstandard	0.157 in	4 mm	10.2 mm	0.394 in	10 mm	0.402 in	506 mOhm	100 kHz	1.15 A	20 %	Wirewound	Shielded
TT Electronics/BI Magnetics HM66-60120LFTR13	Surface Mount	125 °C	-40 °C	12 µH	Nonstandard	0.118 in							10 kHz	1.55 A	20 %	Wirewound	Shielded	3 mm	70 mOhm
TT Electronics/BI Magnetics HM66-50100LFTR13	Surface Mount	125 °C	-40 °C	10 µH	Nonstandard	0.118 in		0.224 in		0.224 in			10 kHz	1.3 A	20 %	Wirewound	Shielded	3 mm	65 mOhm	5.7 mm	5.7 mm
TT Electronics/BI Magnetics HM66-50680LFTR13	Surface Mount	125 °C	-40 °C	68 µH	Nonstandard	0.118 in		0.224 in		0.224 in		355 mOhm	10 kHz	0.52 A	20 %	Wirewound	Shielded	3 mm		5.7 mm	5.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

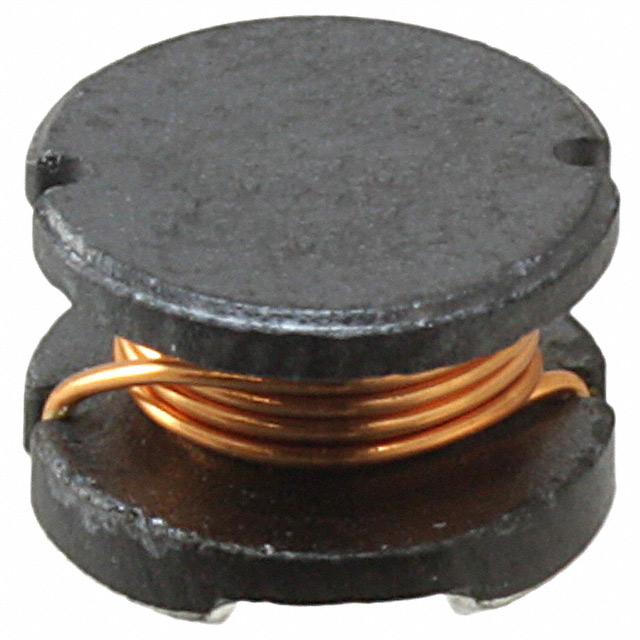

12 µH Shielded Wirewound Inductor 1.55 A 70mOhm Max Nonstandard
