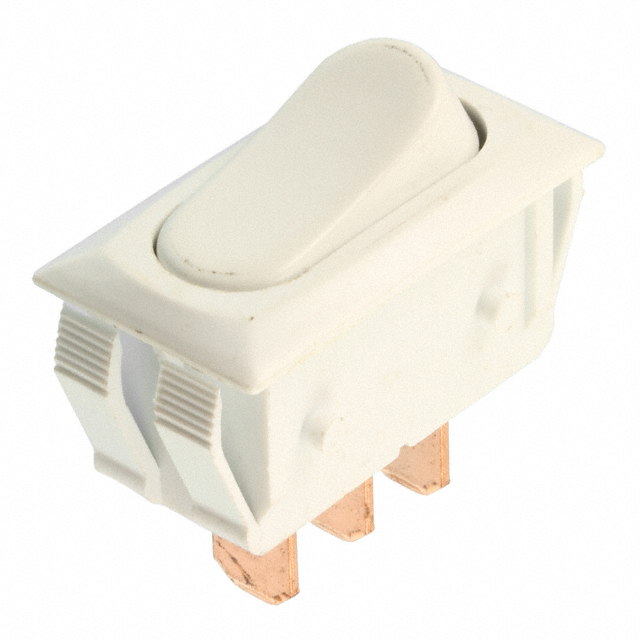

GRS-2012-2501

Active

CW Industries

SWITCH ROCKER SPDT 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

GRS-2012-2501

Active

CW Industries

SWITCH ROCKER SPDT 16A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-2012-2501

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	16 A
Electrical Life	25000 Steps
Features	Polarized
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	28.58 mm
Panel Cutout Dimensions [y]	13.97 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

GRS-2012 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Current Rating (Amps)	Mounting Type	Features	Circuit	Termination Style	Color - Actuator/Cap	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Function	Actuator Marking	Mechanical Life	Electrical Life
CW Industries GRS-2012A-3004	-20 C	105 ░C	Concave (Curved)	13 A	Panel Mount Snap-In	Polarized Terminal Barriers	SPDT	Quick Connect - 0.250" (6.3mm)	Black	125 V	12.19 mm	27.23 mm	On-Mom	No Marking	25000 Steps	25000 Steps
CW Industries GRS-2012-3005	-20 C	105 ░C	Concave (Curved)	16 A	Panel Mount Snap-In	Polarized Terminal Barriers	SPDT	Quick Connect - 0.250" (6.3mm)	Black	125 V	12.19 mm	27.23 mm	On-On	No Marking	25000 Steps	25000 Steps
CW Industries GRS-2012-2508	-20 C	105 ░C	Concave (Curved)	16 A	Panel Mount Snap-In	Polarized	SPDT	Quick Connect - 0.250" (6.3mm)	Brown	125 V	13.97 mm	28.58 mm	On-On	No Marking
CW Industries GRS-2012-2504	-20 C	105 ░C	Concave (Curved)	16 A	Panel Mount Snap-In		SPDT	Quick Connect - 0.250" (6.3mm)	White	125 V	13.97 mm	28.58 mm	On-On	No Marking	100000 Cycles	25000 Steps
CW Industries GRS-2012A-3002	-20 C	105 ░C	Concave (Curved)	13 A	Panel Mount Snap-In	Polarized	SPDT	Quick Connect - 0.250" (6.3mm)	Black	125 V	12.19 mm	27.23 mm	On-Mom	No Marking	25000 Steps	25000 Steps
CW Industries GRS-2012A-2008	-20 C	105 ░C	Concave (Curved)	13 A	Panel Mount Snap-In		SPDT	Quick Connect - 0.250" (6.3mm)	White	125 V	13.97 mm	28.58 mm	On-Mom	No Marking	25000 Steps	25000 Steps
CW Industries GRS-2012-2000	-20 C	105 ░C	Concave (Curved)	16 A	Panel Mount Snap-In		SPDT	Quick Connect - 0.250" (6.3mm)	Black	125 V	13.97 mm	28.58 mm	On-On	No Marking	100000 Cycles	25000 Steps
CW Industries GRS-2012-2028	-20 C	105 ░C	Concave (Curved)	16 A	Panel Mount Snap-In		SPDT	Quick Connect - 0.250" (6.3mm)	Black	125 V	13.97 mm	28.58 mm	On-On	O I	100000 Cycles	25000 Steps
CW Industries GRS-2012-2009	-20 C	105 ░C	Concave (Curved)	16 A	Panel Mount Snap-In		SPDT	Quick Connect - 0.250" (6.3mm)	Red	125 V	13.97 mm	28.58 mm	On-On	No Marking	100000 Cycles	25000 Steps
CW Industries GRS-2012-2501	-20 C	105 ░C	Concave (Curved)	16 A	Panel Mount Snap-In	Polarized	SPDT	Quick Connect - 0.250" (6.3mm)	White	125 V	13.97 mm	28.58 mm	On-On	No Marking	25000 Steps	25000 Steps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.83

Description

General part information

GRS-2012 Series

Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
