GRS-2012-2028
ActiveCW Industries

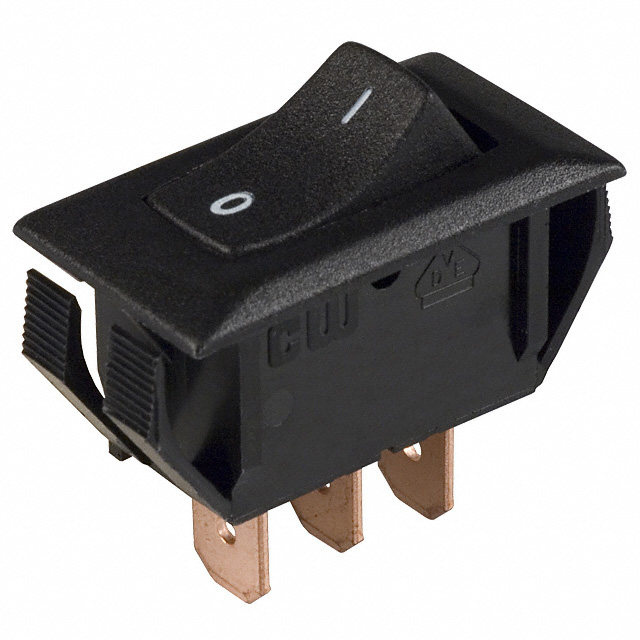

SWITCH ROCKER SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GRS-2012-2028
ActiveCW Industries
SWITCH ROCKER SPDT 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GRS-2012-2028 |
|---|---|
| Actuator Marking | O I |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 25000 Steps |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 28.58 mm |
| Panel Cutout Dimensions [y] | 13.97 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.93 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.79 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.69 | |||
| 500 | $ 0.65 | |||
Description
General part information
GRS-2012 Series
Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In
