AWHW 16G-SMD

Active

Assmann WSW Components

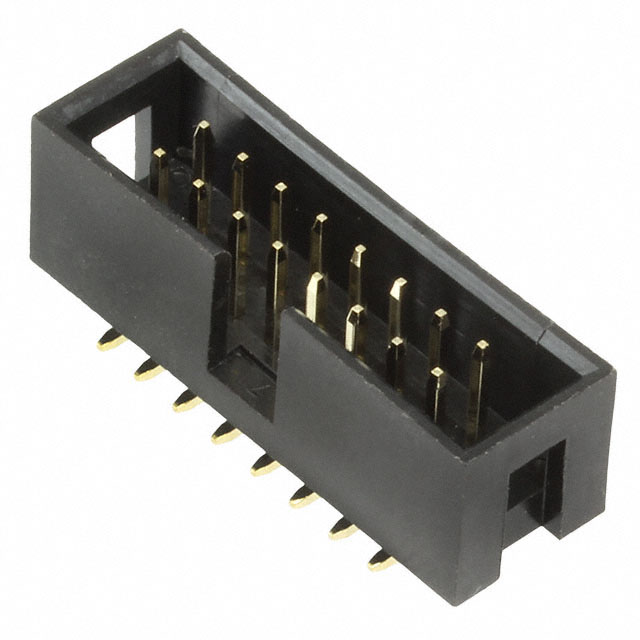

CONN SHROUDED HEADER (4 SIDES) HDR 16 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SHROUDED HEADER (4 SIDES) HDR 16 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW 16G-SMD

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	5.9 mm
Contact Length - Mating	0.232 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Material	Features	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Type	Insulation Material	Current Rating (Amps)	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Style	Shrouding	Contact Finish - Mating	Insulation Color	Number of Positions	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]
Assmann WSW Components AWHW 16G-SMD	Brass	Keying Slot Pick and Place	Flash	2	Push-Pull	Solder	Header	-40 °C	105 ░C	9 mm	0.354 in	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	3 A	All	Surface Mount	UL94 V-0	Board to Cable/Wire	Shrouded - 4 Wall	Gold	Black	16	5.9 mm	0.232 in	0.1 in	2.54 mm	Square	2.54 mm	0.1 in
Assmann WSW Components AWHW 16G-0202-T	Brass	Keying Slot	Flash	2	Push-Pull	Solder	Header	-40 °C	105 ░C	9 mm	0.354 in	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	3 A	All	Through Hole	UL94 V-0	Board to Cable/Wire	Shrouded - 4 Wall	Gold	Gray	16			0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Tin	0.13 in	3.3 mm	0.224 in	5.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 16 position 0.100" (2.54mm)
