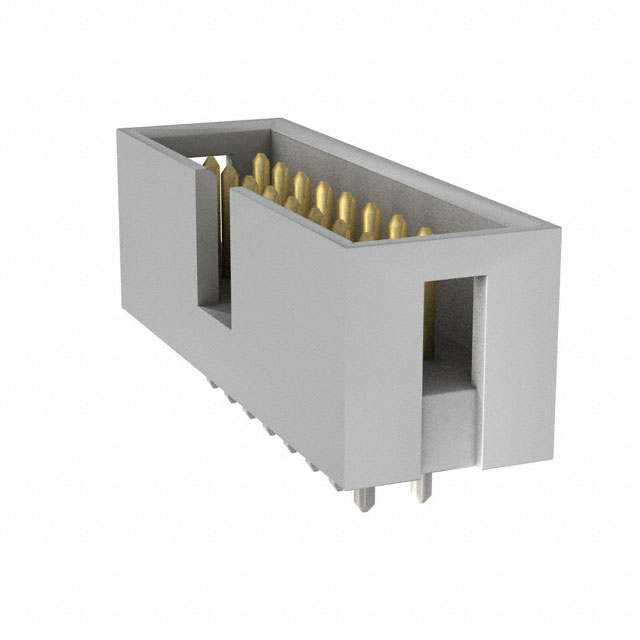

AWHW 16G-0202-T

Active

Assmann WSW Components

CONN HEADER VERT 16POS 2.54MM

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN HEADER VERT 16POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW 16G-0202-T

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Mating [x]	0.224 in
Contact Length - Mating [x]	5.7 mm
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Gray
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Material	Features	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Type	Insulation Material	Current Rating (Amps)	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Style	Shrouding	Contact Finish - Mating	Insulation Color	Number of Positions	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]
Assmann WSW Components AWHW 16G-SMD	Brass	Keying Slot Pick and Place	Flash	2	Push-Pull	Solder	Header	-40 °C	105 ░C	9 mm	0.354 in	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	3 A	All	Surface Mount	UL94 V-0	Board to Cable/Wire	Shrouded - 4 Wall	Gold	Black	16	5.9 mm	0.232 in	0.1 in	2.54 mm	Square	2.54 mm	0.1 in
Assmann WSW Components AWHW 16G-0202-T	Brass	Keying Slot	Flash	2	Push-Pull	Solder	Header	-40 °C	105 ░C	9 mm	0.354 in	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	3 A	All	Through Hole	UL94 V-0	Board to Cable/Wire	Shrouded - 4 Wall	Gold	Gray	16			0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Tin	0.13 in	3.3 mm	0.224 in	5.7 mm
