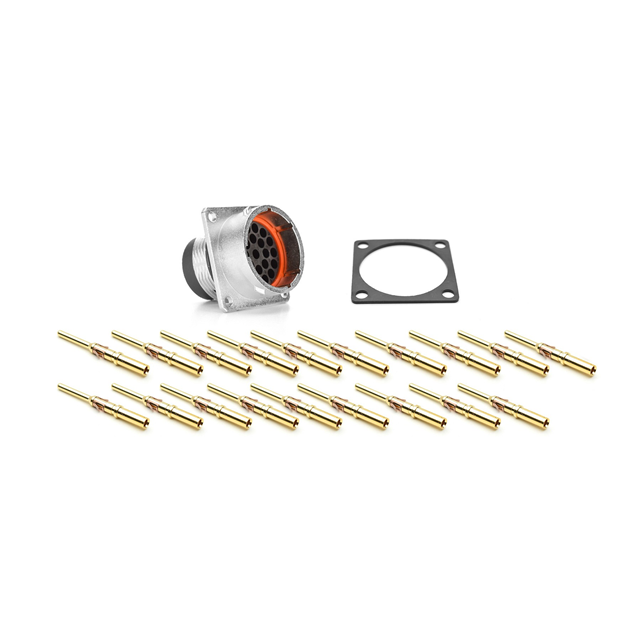

RT0W01419PKNH03-K
ActiveAmphenol Sine Systems Corp
CONN RCPT MALE 19POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
RT0W01419PKNH03-K
ActiveAmphenol Sine Systems Corp
CONN RCPT MALE 19POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT0W01419PKNH03-K |
|---|---|
| Applications | Automation, Aerospace, Telecom, Industrial, Transportation |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating (Amps) | 5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Number of Positions | 19 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert [Max] [custom] | 19 |
| Shell Size - Insert [Min] [custom] | 14 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 250 VAC |
RT0W01419 Series
| Part | Insert Material | Shielding | Features | Contact Size | Contact Shape | Shell Material | Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Orientation | Mounting Feature | Connector Type | Shell Finish | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Material Flammability Rating | Fastening Type | Note | Number of Positions | Contact Type | Ingress Protection | Color | Contact Finish - Mating | Termination | Current Rating (Amps) | Contact Finish Thickness - Mating | Applications | Voltage Rating | Primary Material | Contact Material | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Thermoplastic | Shielded | Backshell | 20 | Circular | Zinc Alloy | For Male Pins | -40 °C | 105 ░C | Silver | N | Flange | Receptacle Housing | Nickel | 19 | 14 | UL94 V-0 | Bayonet Lock | Contacts Not Included | 19 | Crimp | IP67 - Dust Tight Waterproof | ||||||||||
Amphenol Sine Systems Corp | Thermoplastic | Shielded | 20 | Circular | Zinc Alloy | For Male Pins | -40 °C | 105 ░C | Silver | N | Flange | Receptacle Housing | Nickel | 19 | 14 | UL94 V-0 | Bayonet Lock | Contacts Not Included | 19 | Crimp | IP67 - Dust Tight Waterproof | |||||||||||
Amphenol Sine Systems Corp | Polyamide (PA66) Nylon 6/6 | Shielded | Zinc Die Cast | -40 °C | 105 ░C | N | Flange | Male Pins Receptacle | Nickel | 19 | 14 | UL94 V-0 | Bayonet Lock | 19 | IP67 IP69K | Silver | Gold | Crimp | 5 A | Flash | Aerospace Automation Industrial Telecom Transportation | 250 VAC | Metal | Brass | ||||||||
Amphenol Sine Systems Corp | ||||||||||||||||||||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | Shielded | Backshell | 20 | Circular | Zinc Alloy | For Female Sockets | -40 °C | 105 ░C | Silver | N | Flange | Receptacle Housing | Nickel | 19 | 14 | UL94 V-0 | Bayonet Lock | Contacts Not Included | 19 | Crimp | IP67 - Dust Tight Waterproof | ||||||||||
Amphenol Sine Systems Corp | Thermoplastic | Shielded | 20 | Circular | Zinc Alloy | For Female Sockets | -40 °C | 125 °C | Silver | N | Flange | Receptacle Housing | Nickel | 19 | 14 | UL94 V-0 | Bayonet Lock | Contacts Not Included | 19 | Crimp | IP67 - Dust Tight Waterproof | 1 Connector 1 Gasket 1 O-Ring | ||||||||||
Amphenol Sine Systems Corp | Polyamide (PA66) Nylon 6/6 | Shielded | Zinc Die Cast | -40 °C | 105 ░C | N | Flange | Receptacle Female Sockets | Nickel | 19 | 14 | UL94 V-0 | Bayonet Lock | 19 | IP67 IP69K | Silver | Gold | Crimp | 5 A | Flash | Aerospace Automation Industrial Telecom Transportation | 250 VAC | Metal | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.67 | |
| 10 | $ 13.96 | |||
Description
General part information
RT0W01419 Series
19 Position Circular Connector Receptacle, Male Pins Crimp
