RT0W01419PNH

Active

Amphenol Sine Systems Corp

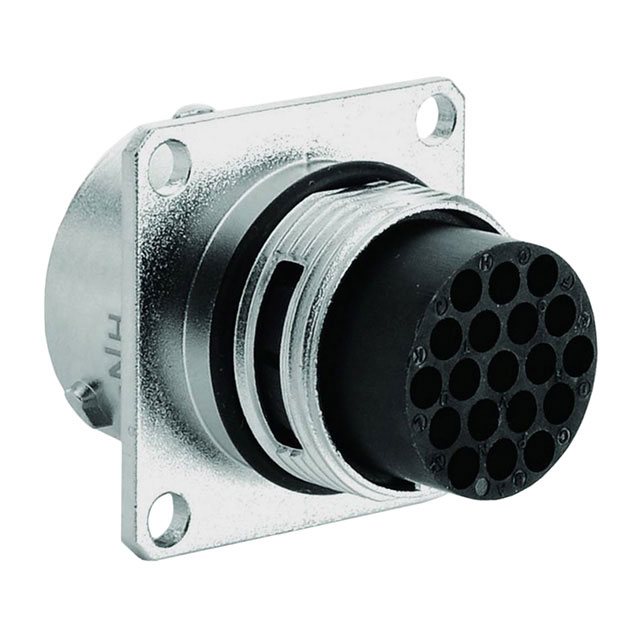

CONN RCPT HSNG MALE 19POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet

RT0W01419PNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 19POS PNL MT

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W01419PNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Shielded
Type	For Male Pins

RT0W01419 Series

Part	Insert Material	Shielding	Features	Contact Size	Contact Shape	Shell Material	Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Orientation	Mounting Feature	Connector Type	Shell Finish	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Material Flammability Rating	Fastening Type	Note	Number of Positions	Contact Type	Ingress Protection	Color	Contact Finish - Mating	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Applications	Voltage Rating	Primary Material	Contact Material	Includes
Amphenol Sine Systems Corp RT0W01419PNHEC	Thermoplastic	Shielded	Backshell	20	Circular	Zinc Alloy	For Male Pins	-40 °C	105 ░C	Silver	N	Flange	Receptacle Housing	Nickel	19	14	UL94 V-0	Bayonet Lock	Contacts Not Included	19	Crimp	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp RT0W01419PNH	Thermoplastic	Shielded		20	Circular	Zinc Alloy	For Male Pins	-40 °C	105 ░C	Silver	N	Flange	Receptacle Housing	Nickel	19	14	UL94 V-0	Bayonet Lock	Contacts Not Included	19	Crimp	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp RT0W01419PKNH03-K	Polyamide (PA66) Nylon 6/6	Shielded				Zinc Die Cast		-40 °C	105 ░C		N	Flange	Male Pins Receptacle	Nickel	19	14	UL94 V-0	Bayonet Lock		19		IP67 IP69K	Silver	Gold	Crimp	5 A	Flash	Aerospace Automation Industrial Telecom Transportation	250 VAC	Metal	Brass
Amphenol Sine Systems Corp RT0W01419SNHEC03
Amphenol Sine Systems Corp RT0W01419SNHEC	Thermoplastic	Shielded	Backshell	20	Circular	Zinc Alloy	For Female Sockets	-40 °C	105 ░C	Silver	N	Flange	Receptacle Housing	Nickel	19	14	UL94 V-0	Bayonet Lock	Contacts Not Included	19	Crimp	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp RT0W01419SNH03	Thermoplastic	Shielded		20	Circular	Zinc Alloy	For Female Sockets	-40 °C	125 °C	Silver	N	Flange	Receptacle Housing	Nickel	19	14	UL94 V-0	Bayonet Lock	Contacts Not Included	19	Crimp	IP67 - Dust Tight Waterproof										1 Connector 1 Gasket 1 O-Ring
Amphenol Sine Systems Corp RT0W01419SKNH03-K	Polyamide (PA66) Nylon 6/6	Shielded				Zinc Die Cast		-40 °C	105 ░C		N	Flange	Receptacle Female Sockets	Nickel	19	14	UL94 V-0	Bayonet Lock		19		IP67 IP69K	Silver	Gold	Crimp	5 A	Flash	Aerospace Automation Industrial Telecom Transportation	250 VAC	Metal	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.95
		10	$ 14.14
		25	$ 13.60
		50	$ 13.05
		100	$ 12.33
		300	$ 11.24
		500	$ 10.52
		1000	$ 9.64

Description

General part information

RT0W01419 Series

19 Position Circular Connector Receptacle Housing Panel Mount
